Constant Current LED Drivers

PDB Series

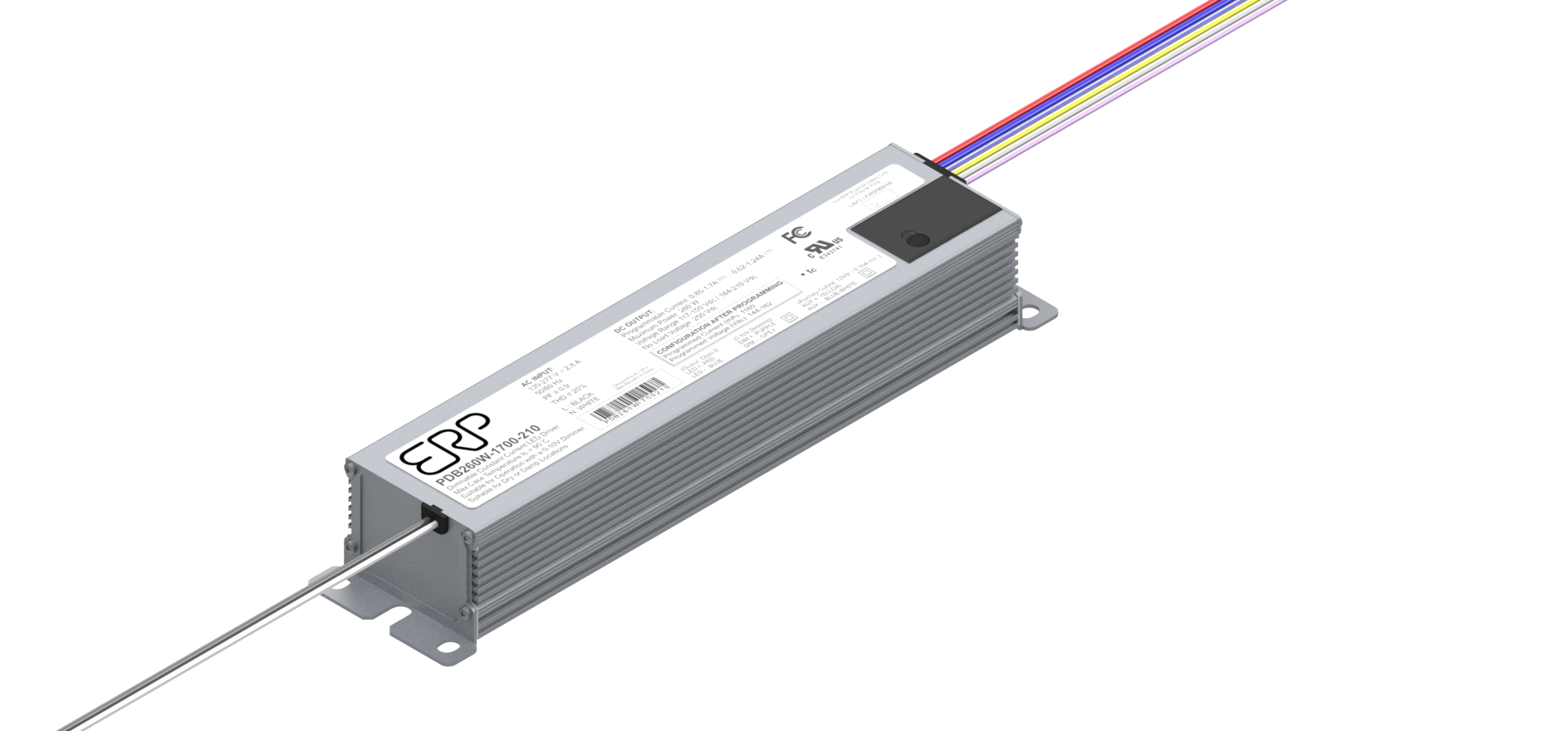

260 W, Programmable Constant Current LED Driver with 0-10 V Dimming
Features:
  • Non-linear 0-10V dimming profile with dim-to-off (10V to 9.1V=100%, 1.5V to 0.6V=1%, <0.6V=dim-to-off)
  • Auxiliary output 12 V/100 mA
  • IP66-rated case with silicone-based potting
  • Surge protection:
  • IEC61000-4-5: 4 kV line to line/4 kV line to earth
  • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
  • Ripple: 25%
  • Protections: Output open load, over-current and shortcircuit (hiccup), over-power, over-temperature with foldback and auto-recovery
  • Conducted and radiated EMI: Compliant with FCC CFR Title 47 Part 15 Class A at 120 Vac & 277 Vac and EN 55015 (CISPR 15) at 220/230/240 Vac
  • Lifetime: 50,000 hours @ TC = 70°C
  • 90°C maximum case hot spot temperature
  • UL Class P

Applications:
  • Area Lighting
  • Commercial lighting
  • Outdoor LED Light
  • Street Lights
download (3)download (1)downloadDLC LogoIecee Cb Scheme Electric And Electrical Safety Cb Certificate And Report Iec Cb ReportCuluslisted E4726195 Year Warranty Logo
Technical Documentation:
> Short Datasheet
Email Me the Full Datasheet:
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120 to 277 Vac nominal 260 W Programmable Dual Output Programmable Dual Output Constant Current Up to 93% < 20% 90° C (measured at the hot spot) > 0.9 0-10V 1-100% (% of Iout) 500 ms Typical
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)
Output Current (mA) Power (W) Voltage Range (Vdc) Case Type Dimming Status Availability
PDB260W-1700-210 120 to 277 850 - 1700 114 - 150 IP66 Aluminum 0-10V (1-100%) sampling Check >
PDB260W-1300-280 120 to 277 650 - 1300 152 - 200 IP66 Aluminum 0-10V (1-100%) sampling Check >
PDB260W-0860-400 120 to 277 850 - 1700 430 - 860 IP66 Aluminum 0-10V (1-100%) sampling Check >
Notes:
  • Programming via desktop/laptop computer running ERP Power software connected to the driver over a USB serial cable
