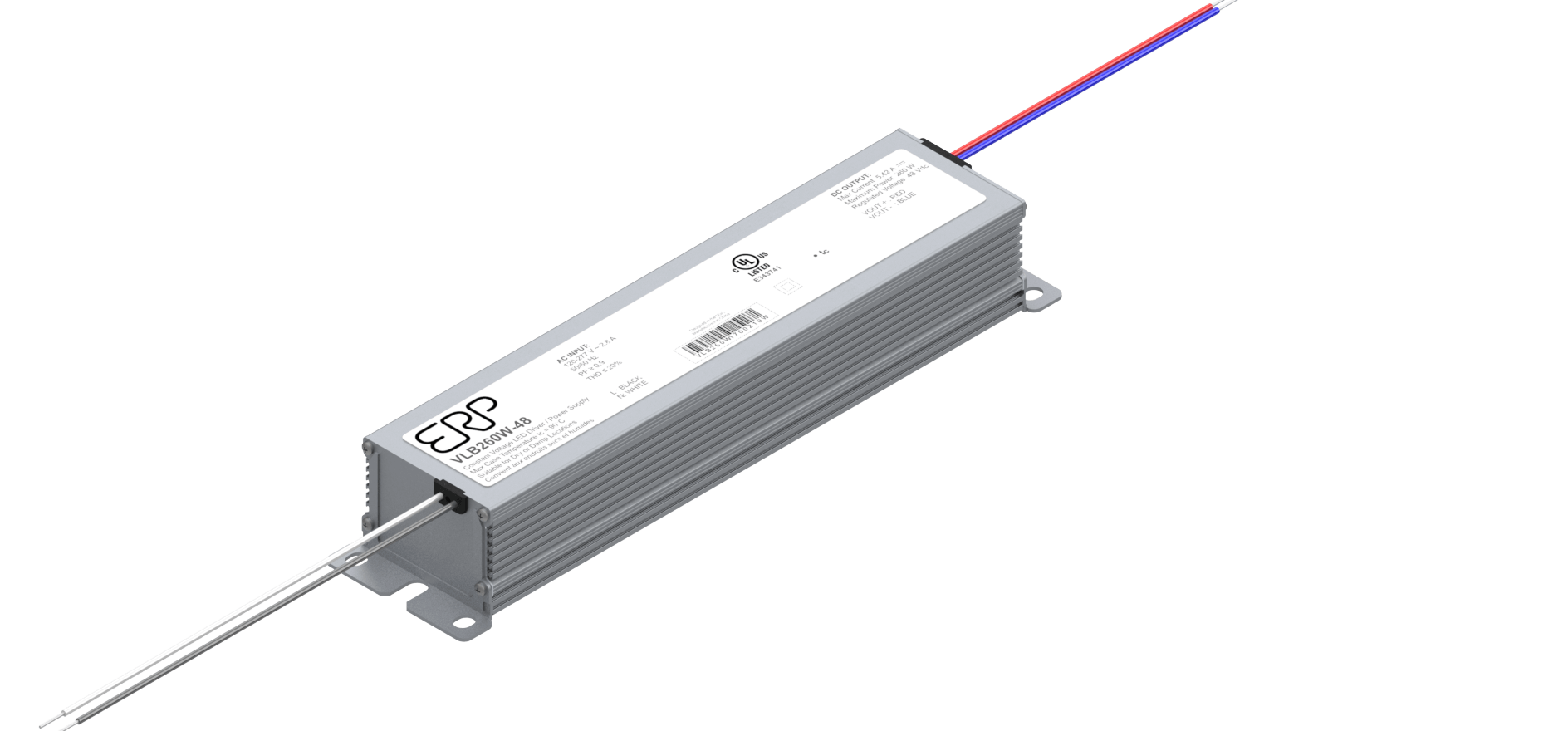

Constant Voltage LED Drivers

VLB Series

260 W, Efficient, Compact
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120 & 277 Vac 260 W 12, 24, 48 Vdc 21.6, 10.8, 5.4 A Up to 93% < 20% 90° C (measured at the hot spot) > 0.9 No dimming 750 ms Maximum
Features:
  • Very high power density of 10.2 W/in3
  • IP66-rated case with silicone-based potting
  • 90°C maximum case hot spot temperature
  • Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title
  • UL Class P
  • Worldwide safety approvals

Applications:
  • Horticulture
  • Indoor lighting
  • Industrial Lighting
  • Outdoor LED Light
UL CertifiedFC CertifiedEnergy Star5 Year Warrenty
Technical Documentation:
> Datasheet
Email me the additional documentation:
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)
Max Output Current (mA) Power (W) Output Voltage (Vdc) Case Type Dimming Status Availability
VLB260W-48 120 & 277 5420 260 48 - 48 IP66 Rectangular Metal No dimming sampling Check >
VLB260W-24 120 & 277 10830 260 24 - 24 IP66 Rectangular Metal No dimming sampling Check >
VLB260W-12 120 & 277 21670 260 12 - 12 IP66 Rectangular Metal No dimming sampling Check >
Notes:
  • For additional options of output current and output voltage, contact your sales representative or send an email to: SaveEnergy@ERP-Power.com
