Round Light Engines (CTM1C, DDM1C)
The Technology Inside
The One Family
The Feature Set
The CTM1C family combines driver electronics, logic and communications in a Zhaga compliant 50mm diameter package.
The CTM 1C family has a range of 1650 -8000K at a CRI of >90* and <2 SDCM over life. 0-10V, Bluetooth and DMX are on board. *From 2000–6000K.
A highly engineered silicone diffuser.
Light from the five color array is diffused at efficiencies up to 92%.
A non-yellowing plastic housing with Zhaga-compliant heat sink mounting holes.
The housing enables light emitting surfaces of 9, 12 and 19mm and multiple reflector attachments.
The highly engineered mixing chamber is designed to efficiently mix light from the 5 different colors of LEDs.
The high reflectivity and engineered design facilitate near field mixing of multi colored light.
The logic board contains the electronics that are the processing and communication brains.
The logic board manages the color model and Bluetooth communications.
The LED and Driver board contain the driver electronics, five color LED array and a highly effective platform for thermal pathways.
The CTM 1C family delivers up to 2000 lumens and dissipates up to 35W from a 50mm base.
The CTM 1C Platform
CTM 1C round light engines mix five colors of LEDs across a tunable color range of 1650–8000 K or a warm dim range of 1800–3050 K. The light can be dimmed from 100–1%. The light engines deliver up to 2000 lm of light at 90+ CRI. Proprietary thermal and optical technologies ensure color consistency of < 2 SDCM over the 50,000-hour rated life.

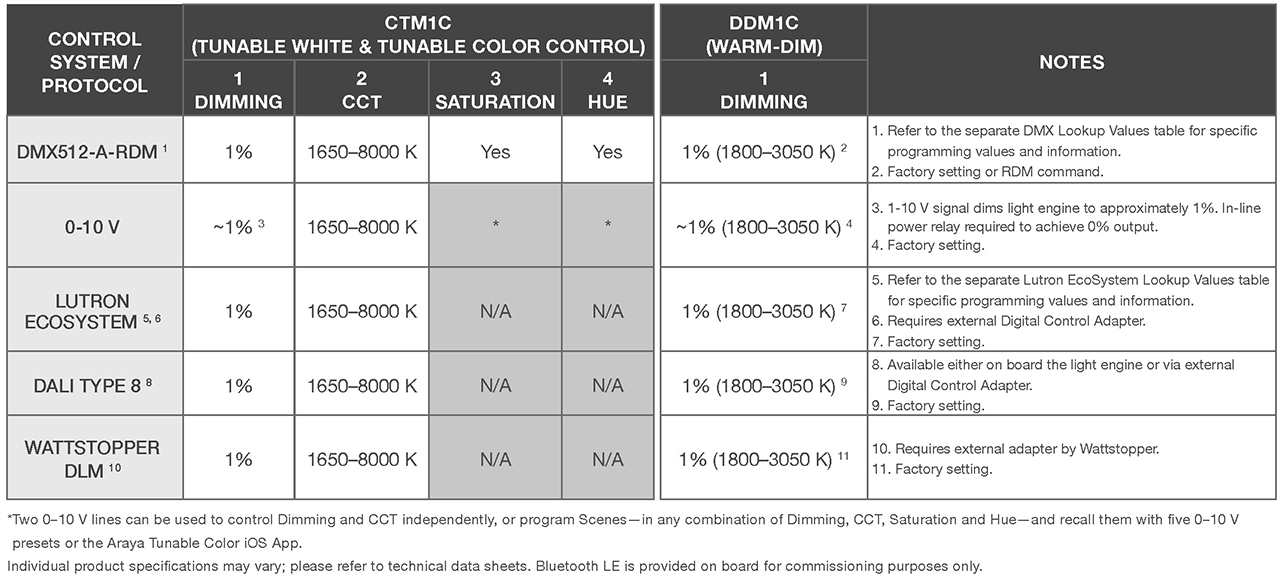

CTM 1C simplifies fixture control integration and reduces cost by packaging Bluetooth LE (for commissioning), 0–10 V and DMX512-A-RDM on board the light engines. Lutron® EcoSystem or DALI Type 8 compatibility is achieved by using the ERP Digital Control Adapter. DALI Type 8 can also be packaged on board the light engines. Legrand® Wattstopper® DLM compatibility is achieved via an external adapter.
The CTM 1C WI Platform
CTM1C WI round light engines mix five colors of LEDs across a tunable color range of 1650–8000 K. The light can be dimmed from 100–1%. The light engines deliver up to 1700 lm of light at 90+ CRI. Proprietary thermal and optical technologies ensure color consistency of < 2 SDCM over the 50,000-hour rated life.
CTM1C WI can be connected to a BLE wireless interface dongle/harness, leveraging the patented Avi-on™ BLE Mesh platform to enable many-to-many device communication in a connected system “cloud”. The proprietary Avi-on mobile app is used for setting up the network, commissioning the various system components, grouping devices, creating associated schedules and scenes, and providing manual adjustment of color temperature and/or intensity.
