Round Light Engines with araya™ Logic Light Module (ALM2, CTM2)
The araya™ Logic Light Module (ALM) features control logic for precise control of current and PWM while tuning and dimming.
Color Tuning Logic Light Module

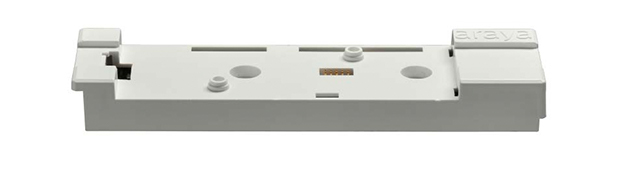

Araya Logic Module - The Heart & Brains of the TWO Family
The lid of the logic light module opens to reveal an expansion port.
An expansion card connects via the interface to easily facilitate DMX512-A-RDM compatibility.

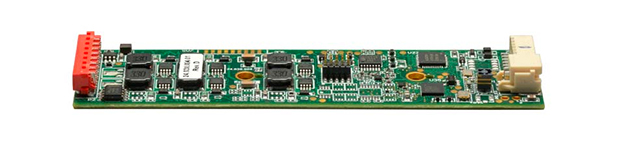

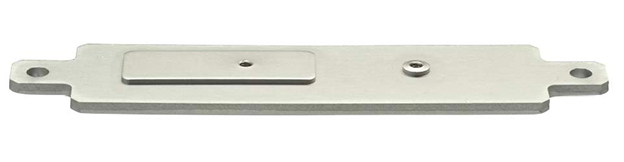

The heart and brains contain the logic, and communication electronics to control either linear or round araya™ arrays.
Processes control information and closed loop optical and thermal feedback and outputs up to 6 channels of power.
The CTM2 Platform

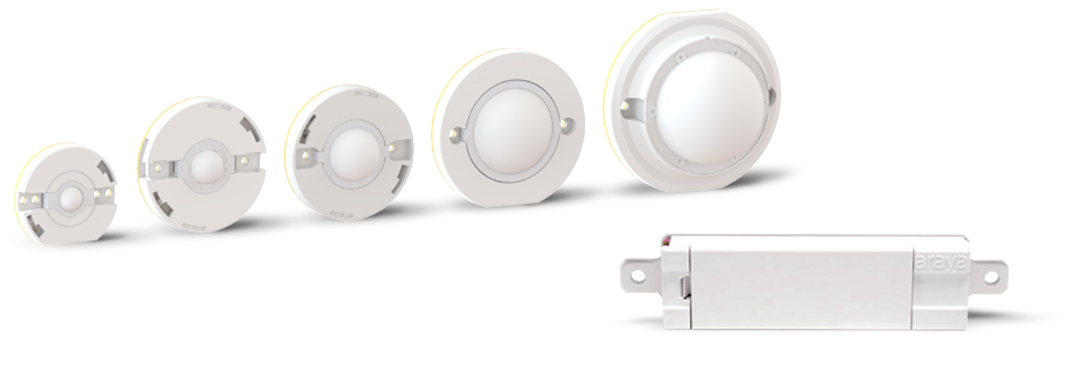

araya™ Logic Light Modules (ALM) connect to high-power round LED light engines that mix five colors of LEDs across a tunable color range of 1650–8000 K (CTM2) or an optional warm dim range of 1800–3050 K. The light can be dimmed from 100–0.1%*. The light engines deliver up to 4300 lm of light at 90+ CRI. The ALM features on-board driver electronics and control logic for precise control of current and PWM while tuning and dimming.
The logic light module rapidly generates a unique color model on the spot based on the spectral characteristics stored on the connected light engine, providing precision tuning of the light engine’s full spectrum color output. This enables the replacement of ALM as needed, and provides the ability to mix and match the various types of logic light modules with the various sizes of CTM2 light engines. Another key innovation is the ability of the araya logic module to receive firmware upgrades over wired RDM/DMX to ensure field compatibility with previously deployed control systems.

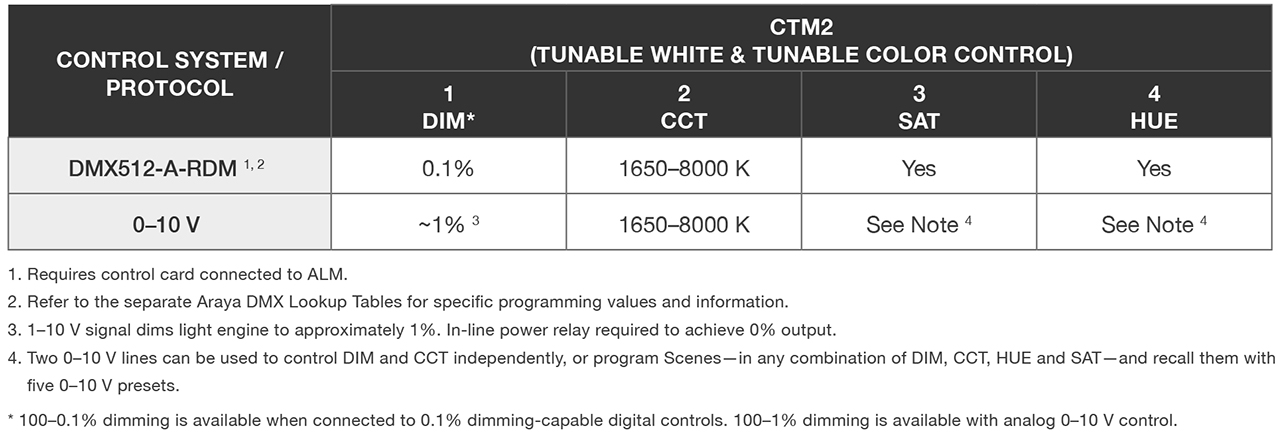

Fixture control integration is achieved by packaging 0–10 V on-board the ALM. In addition, DMX512-A-RDM compatibility can be achieved via a control card that connects to an expansion port within the ALM.
