AC input light engines

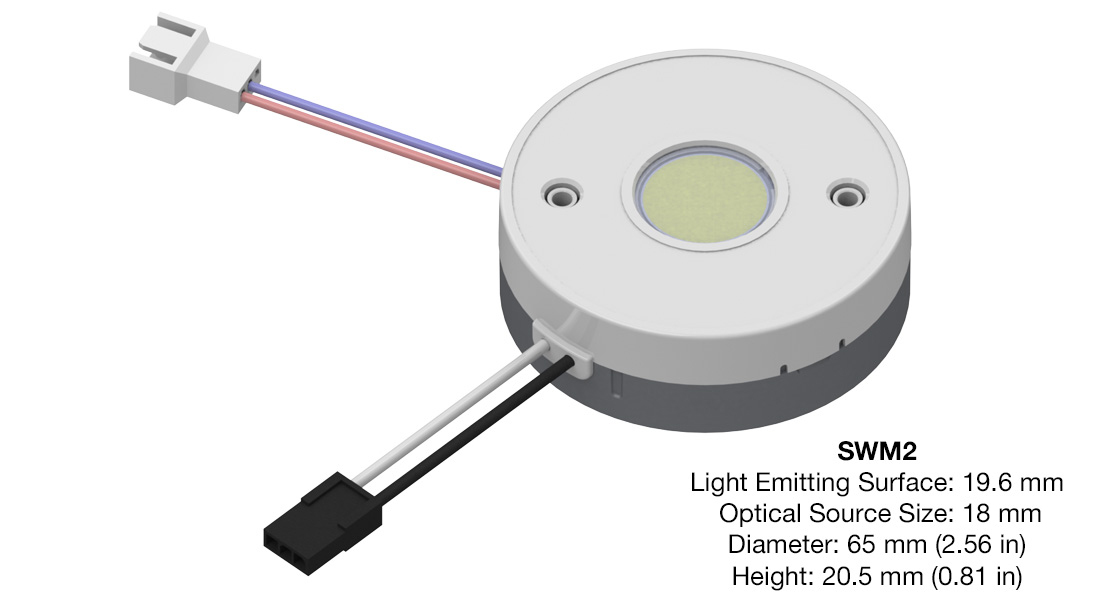

SWM2 Series
| Input Voltage | Nominal input power | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|
| 120–277 Vac | 28 W, 35 W | < 20% | 90℃ (measured at the hot spot) | > 0.9 | 0–10 V | 1–100% | 300 ms typical |
Features:
- Integrated AC to DC driver electronics
- Designed for field replaceability with front heat sink mounting
- Meets UL8750 Safety-Related Electronics Circuits (SREC) requirements
- Approved for use as thermal cutout for fixture per UL1598
- CA Title 24, IEEE 1789-2015, & Energy Star Compliant
- Color consistency of < 3 step (2 step typical) MacAdam ellipse
- Available with or without Diffuser Options
- Dim-to-off capability
- On board overtemperature protection (OTP) with thermal foldback
- 90+ CRI
- Case Diameter: 65 mm
- Light Emitting Surface (LES) diameter: 18 mm (nominal)
Programming:
- Dim-Stop
- Dim-to-Off
Applications:
- Architectural
- Commercial lighting
- Downlight
- Indoor lighting
| ERP Part Number | LES (Light Emitting Surface) (mm) |
Typical Peak Lumens (lm) |
Nominal Efficacy (lm/W) (@ 4000 K) |
Lumen packing Density (lm/in3) |
Bluetooth LE (BLE) Capability |
Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| SWM2-18-50-27NBZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-27NSZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-30NBZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-30NSZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-35NBZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-35NSZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-40NBZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > | |
| SWM2-18-50-40NSZ | 18 | 5000 | 140 | No | 0-10 V | production | Check > |
