Round LED
Light Engines
We offer a selection of round LED light engines in our CTM1C family. These light engines uniquely mix five colors of LEDs across a wide tunable color range and provide excellent dimming capabilities and color consistency.
Color Tuning Module
Select your desired voltage for the color tuning modules of your round LED light engines to learn more about what it does and how it empowers exceptional lighting.
The Technology Inside
The One Family
The Feature Set
The CTM1C family combines driver electronics, logic and communications in a Zhaga compliant 50mm diameter package.
The CTM 1C family has a range of 1650 -8000 K at a CRI of > 90* and < 2 SDCM over life. 0-10 V and DMX512-A-RDM are on board. *From 2000–6000 K.
A highly engineered silicone diffuser.
Light from the five color array is diffused at efficiencies up to 92%.
A non-yellowing plastic housing with Zhaga-compliant heat sink mounting holes.
The housing enables light emitting surfaces of 9, 12 and 19 mm and multiple reflector attachments.
The highly engineered mixing chamber is designed to efficiently mix light from the 5 different colors of LEDs.
The high reflectivity and engineered design facilitate near field mixing of multi colored light.
The logic board contains the electronics that are the processing and communication brains.
The logic board manages the color model and Bluetooth communications.
The LED and Driver board contain the driver electronics, five color LED array and a highly effective platform for thermal pathways.
The CTM1C family delivers up to 2000 lm and dissipates up to 35 W from a 50 mm base.
The CTM1C Platform
CTM1C round LED light engines mix five colors of LEDs across a tunable color range of 1650–8000 K (or an optional warm dim range of 1800–3050 K). The light can be dimmed from 100–1%. The round LED light engines deliver up to 2000 lm of light at 90+ CRI. Proprietary thermal and optical technologies ensure color consistency of < 2 SDCM over the 50,000-hour rated life.

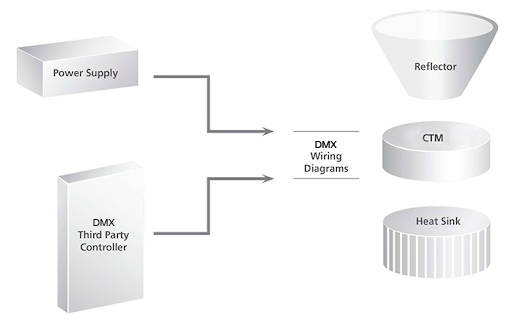

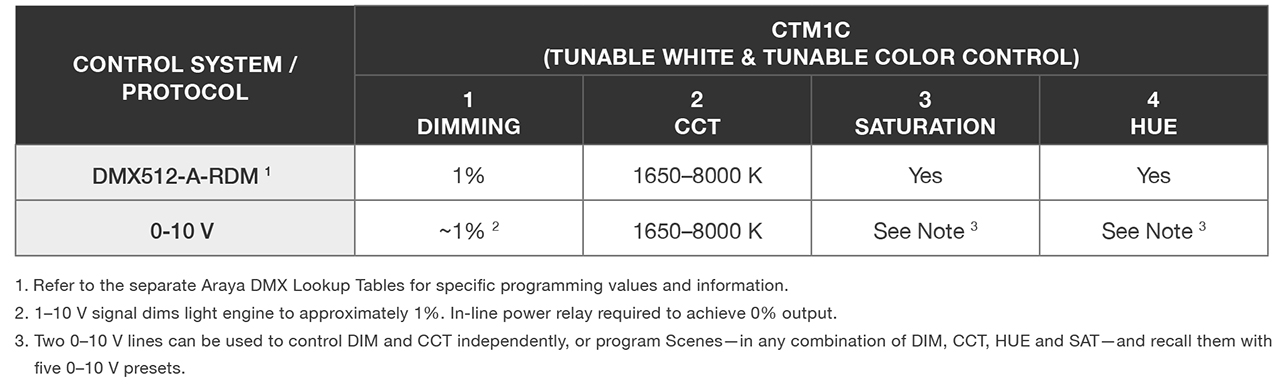

CTM1C simplifies fixture control integration and reduces cost by packaging 0–10 V and DMX512-A-RDM on board the light engines.
The CTM1C-E Platform

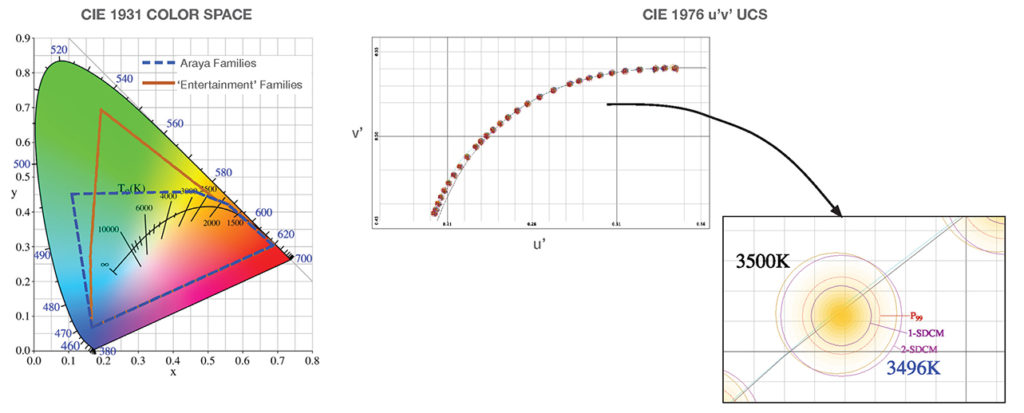

The ‘Entertainment’ family of araya™ Color Tuning Modules (CTM1C-E) delivers tunable white light across a CCT range of 1700–8000 K and dimming from 100–1%, while maintaining constant CCT, 90+ CRI and 70+ R9. With an expanded color gamut and on-board thermal feedback for color consistency, this family of CTM lights provides exemplary performance for applications requiring high quality in color.

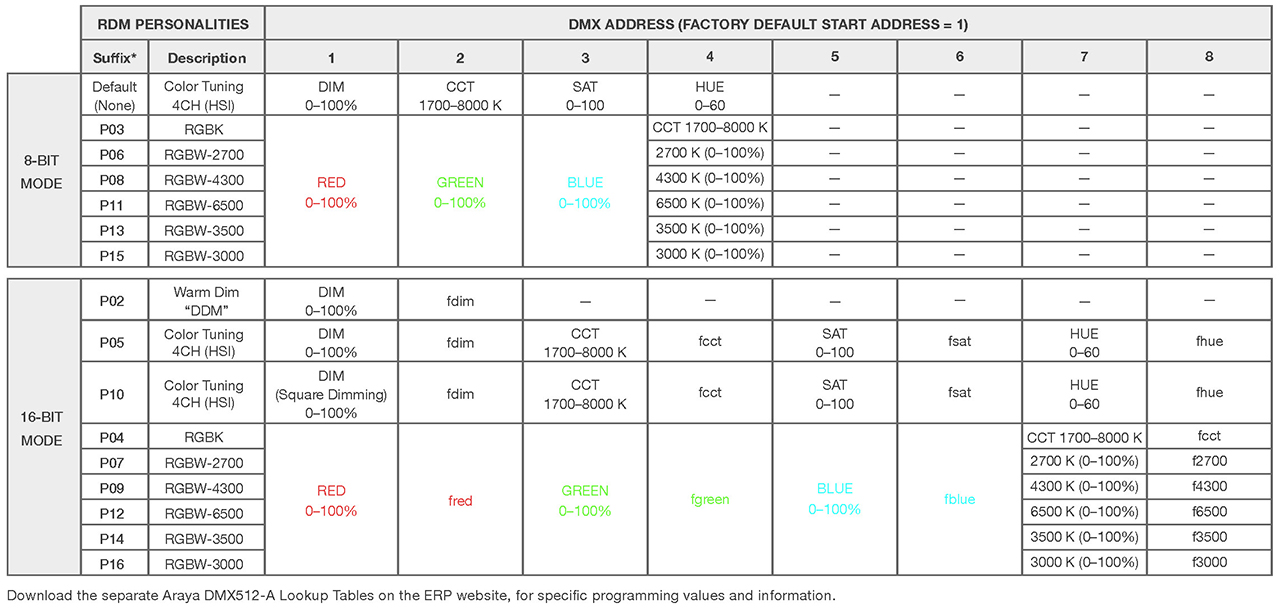

Notable features of CTM1C-E are on-board 0-10 V and DMX512-A-RDM, over-the-wire FW upgrade-ability (FWU), and preloaded RGBW personalties. Choose from any one of sixteen (16) personalities, which include the original Araya Color Tuning (HSI), Warm/Dynamic Dimming, and several RGBW control options.
