AC input light engines

TWM2 Series

Input Voltage Nominal input power THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120 - 277 Vac 28 W < 20% 90℃ (measured at the hot spot) >0.9 0-10 V, TRIAC 1-100% 300 ms typical

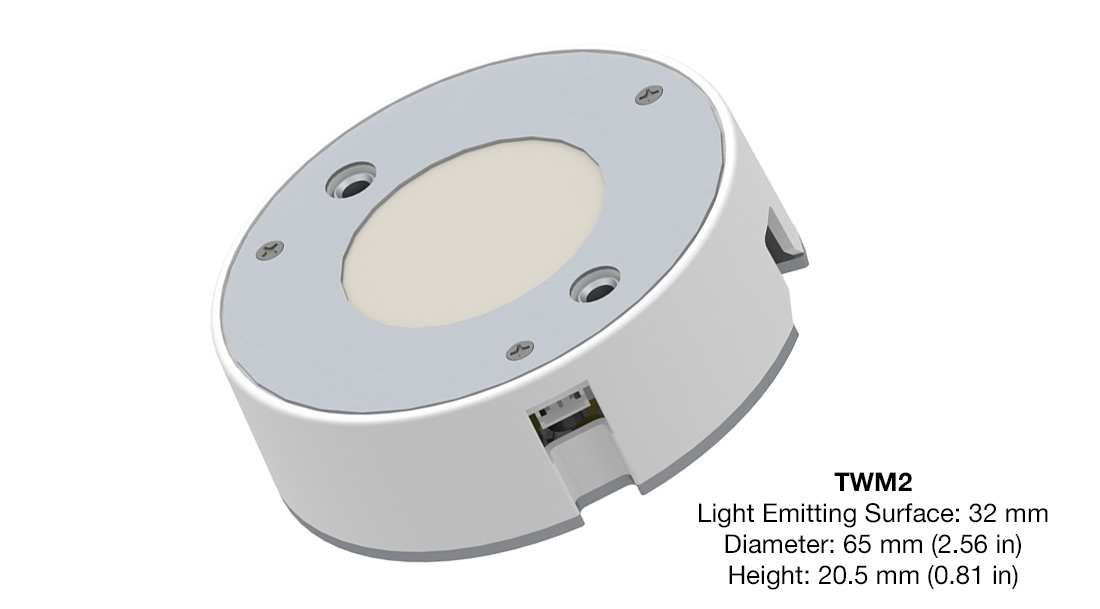

Twm2
Features:
  • Integrated AC to DC driver electronics
  • Case Diameter: 65 mm
  • Light Emitting Surface (LES) size: 32 mm
  • Universal AC input voltage range for worldwide use (120 to 277 Vac)
  • Tunable range: 1800 – 6500 K
  • Dimmable range: 100%-1%
  • Warm dim ranges:
    • 3050 – 1800 K (MR16 Halogen profile)
    • 2700 – 1800 K (Incandescent profile)
  • 90+ CRI
  • Color Consistency of <3 step (2 step typical) MacAdam ellipse
  • CCT control: 0-10 V
  • DIM control: 0-10 V & TRIAC
  • Dim-to-off capability
  • Wireless commissioning
PROGRAMMING
  • Programmable with TWM Programming Tool
  • Programming options:
    • CCT
    • DIM-Trim
    • Wireless functionality
    • Dim-to-off functionality
Applications:
  • Architectural
  • Commercial lighting
  • Downlight
  • Indoor lighting
CA Title 24Energy StarFC Certified5 Year WarrentyC Ru Us
Technical Documentation:
> Datasheet
Email me the additional documentation:
Loading Products
ERP Part Number LES (Light Emitting Surface)
(mm)		 Typical Peak Lumens
(lm)		 Nominal Efficacy (lm/W)
(@ 4000 K)		 Lumen packing Density
(lm/in3)		 Bluetooth LE (BLE)
Capability		 Dimming Status Availability
TWM2-32-18-BN 32 1800 95 430 No 0-10 V TRIAC sampling Check >
TWM2-32-18-BD 32 1800 95 430 No 0-10 V TRIAC sampling Check >
TWM2-32-18-EN 32 1800 95 430 No 0-10 V TRIAC sampling Check >
TWM2-32-18-ED 32 1800 95 430 No 0-10 V TRIAC sampling Check >
TWM2-32-18-PN 32 1800 95 430 Yes 0-10 V TRIAC sampling Check >
TWM2-32-18-PD 32 1800 95 430 Yes 0-10 V TRIAC sampling Check >
TWM2-32-26-BD 32 2600 96 650 No 0-10 V TRIAC sampling Check >
TWM2-32-26-BN 32 2600 96 650 No 0-10 V TRIAC sampling Check >
TWM2-32-26-EN 32 2600 96 650 No 0-10 V TRIAC sampling Check >
TWM2-32-26-PN 32 2600 96 650 Yes 0-10 V TRIAC sampling Check >
TWM2-32-26-ED 32 2600 96 650 No 0-10 V TRIAC sampling Check >
TWM2-32-26-PD 32 2600 96 650 Yes 0-10 V TRIAC sampling Check >
