Tunable Color: araya™

ArayaTM

Experience the advantages of tunable color with araya™ light engines, which mix five LED colors to create an immersive lighting experience.

Round Light Engines (CTM1C, CTM1C-E)

The CTM1C family combines driver electronics, logic, and communications, simplifying fixture control integration and helping reduce costs.

Round Light Engines with araya™ Logic Module

The araya™ Logic Module (ALM) rapidly generates a unique color model on the spot based on the spectral characteristics stored on the connected light engine, providing precision tuning of the light engine’s full spectrum color output.

Linear Light Engines with araya™ Logic Module

araya™ Logic Module (ALM) connects to mid-power linear LED light engines that mix five colors of LEDs across a tunable color range of 1650–8000 K, allowing for precision tuning of the light engine’s full spectrum color output.

The araya™ Breakthrough

The replication and control of the range and beauty of daylight while ensuring color consistency from fixture-to-fixture.

The Beauty of Our Light Engines

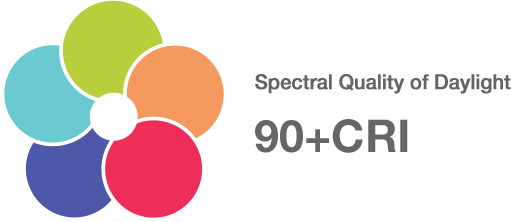

01

HIGHEST QUALITY TUNABLE LIGHT

araya™ recreates daylight by mixing LED colors of the rainbow – red, amber, mint, cyan and blue, plus green if an expanded gamut option with saturated green is desired – to deliver full spectrum light from 1650K to 8000K at 90+ CRI.

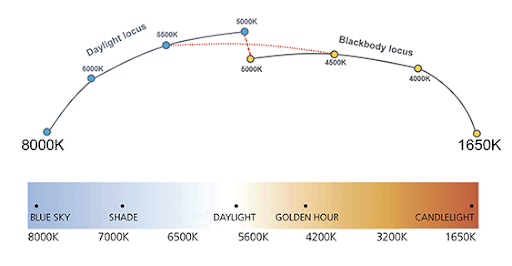

02

NATURAL DAYLIGHT EMULATION

From sunrise through sunset, the light tracks the CIE Blackbody locus from 1650 – 4500K and then smoothly transitions to the Daylight Curve to 8000K.

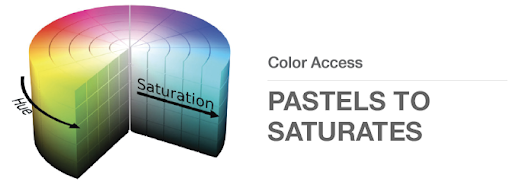

03

FULL-COLOR ACCESS

Millions of colors exist within the gamut area created by the five LEDs in the CIE color space, enabling tailored light from shades of pastels to saturates.

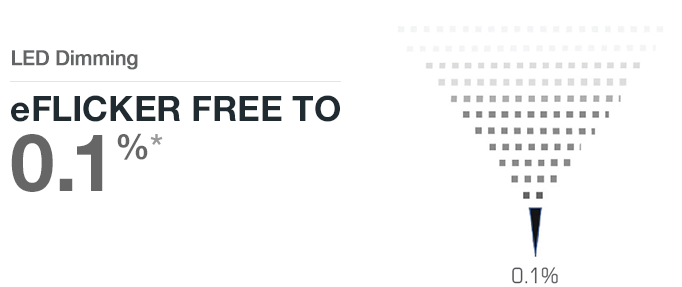

04

eFLICKER-FREE LED DIMMING

Our LED light engines are enabled by a proprietary hybrid technology that maintains color consistency while dimming and operates at a frequency that allows eflicker-free video capture.

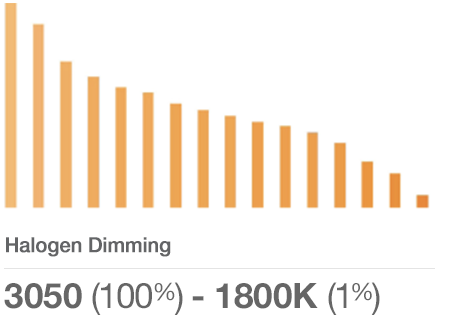

05

TRADITIONAL DIMMING – RE-CREATED

Our light engines emulate a halogen lamp from 3050K at full brightness to 1800K at 1%.

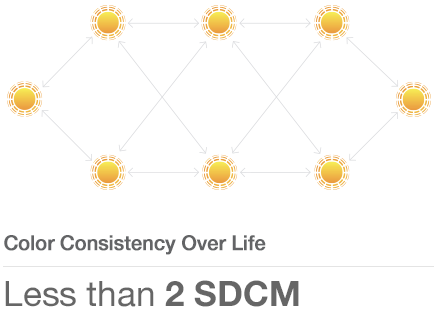

06

COLOR CONSISTENCY OVER LIFE

With a color consistency of less than 2 MacAdam ellipse over life from fixture-to-fixture (as verified by independent LM-84 testing), our LED light engines also provide on-board driver electronics and control logic for precise control of current and PWM.
