AC input light engines

TWM1 Series

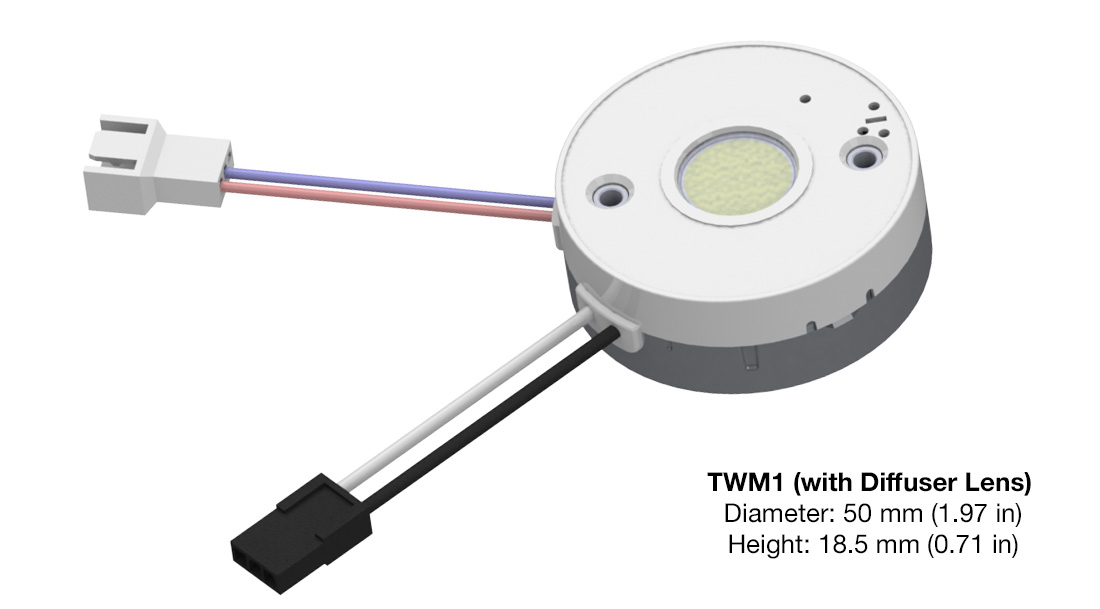

TWM1 3d render
Input Voltage Nominal input power THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120–277 Vac 14 W, 16.5 W, 18 W, 26 W < 20% 90℃ (measured at the hot spot) > 0.9 0–10 V, TRIAC, ELV 1–100% 300 ms typical
Features:
  • Integrated AC to DC driver electronics
  • Zhaga compliant footprint
  • 3 modes of operation: Tunable White, Static White, Warm Dim
  • Designed for field replaceability with front heat sink mounting
  • Meets UL8750 Safety-Related Electronics Circuits (SREC) requirements
  • Approved for use as thermal cutout for fixture per UL1598
  • Configurable maximum light output (100% – 60%)
  • Configurable tunable CCT range
  • Warm dim ranges:
    • 3050–1800 K (MR16 Halogen profile)
    • 2700–1800 K (Incandescent profile)
  • CA Title 24, IEEE 1789-2015, & Energy Star Compliant
  • Color Consistency of < 3 step (2 step typical) MacAdam ellipse
  • Available with or without Diffuser Options
  • Available with or without Bluetooth Options
  • Dim-to-off capabilit (when used with 0–10 V dimmer)
  • Wireless commissioning with the ERP Tunable White app (iOS)
  • On board overtemperature protection (OTP) with thermal foldback
  • Circadian Rhythm lighting support with a controller
  • 90+ CRI
  • Case Diameter: 50 mm
  • Light Emitting Surface (LES) diameters: 19 mm, 12 mm, 9 mm


Programming:

  • Dim-Stop
  • Dim-to-Off
  • Fixed CCT
  • Wireless Commissioning
Applications:
  • Architectural
  • Commercial lighting
  • Downlight
  • Indoor lighting
CA Title 24Energy StarFC Certified5 Year WarrantyC Ru Us
Technical Documentation:
> Datasheet
Email me the additional documentation:
Loading Products
ERP Part Number LES (Light Emitting Surface)
(mm)		 Typical Peak Lumens
(lm)		 Nominal Efficacy (lm/W)
(@ 4000 K)		 Lumen packing Density
(lm/in3)		 Bluetooth LE (BLE)
Capability		 Dimming Status Availability
TWM1-19-20-EDS 19 2000 100 TBD No 0-10 V TRIAC sampling Check >
TWM1-19-20-EDB 19 2000 100 No 0-10 V TRIAC production Check >
TWM1-19-20-PDS 19 2000 100 TBD Yes 0-10 V TRIAC sampling Check >
TWM1-19-20-PDB 19 2000 100 Yes 0-10 V TRIAC production Check >
TWM1-19-14-EDS 19 1400 100 TBD No 0-10 V TRIAC production Check >
TWM1-19-14-EDB 19 1400 100 No 0-10 V TRIAC production Check >
TWM1-19-14-PDS 19 1400 100 TBD Yes 0-10 V TRIAC production Check >
TWM1-19-14-PDB 19 1400 100 Yes 0-10 V TRIAC production Check >
TWM1-12-16-EDS 12 1600 100 TBD No 0-10 V TRIAC sampling Check >
TWM1-12-16-EDB 12 1600 100 No 0-10 V TRIAC production Check >
TWM1-12-16-PDS 12 1600 100 TBD Yes 0-10 V TRIAC sampling Check >
TWM1-12-16-PDB 12 1600 100 Yes 0-10 V TRIAC production Check >
TWM1-09-14-EDS 9 1400 100 TBD No 0-10 V TRIAC sampling Check >
TWM1-09-14-EDB 9 1400 100 No 0-10 V TRIAC production Check >
TWM1-09-14-PDS 9 1400 100 TBD Yes 0-10 V TRIAC sampling Check >
TWM1-09-14-PDB 9 1400 100 Yes 0-10 V TRIAC production Check >
Notes:

There are currently no notes available at this time.
