Constant Voltage LED Drivers

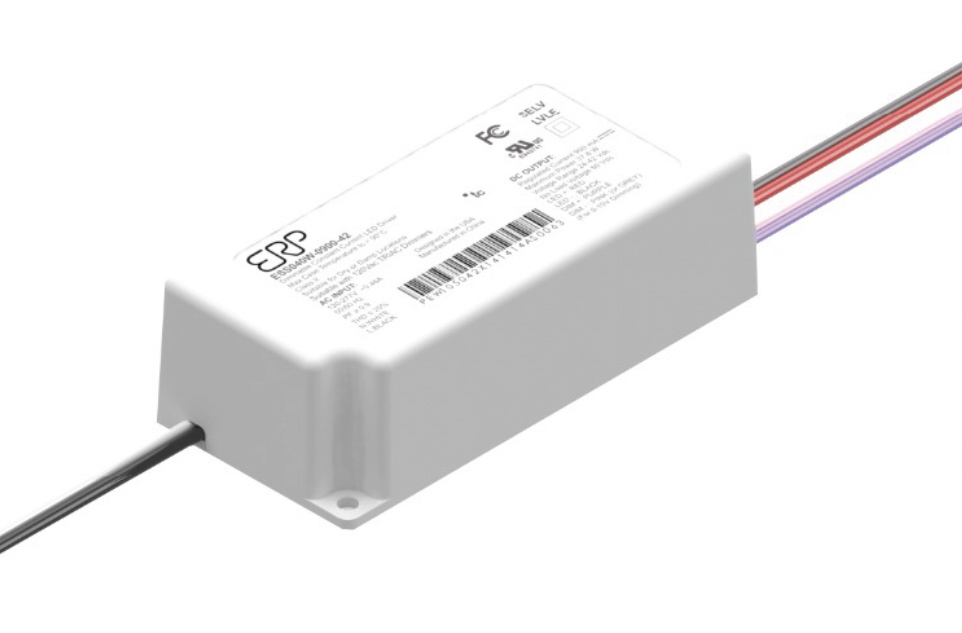

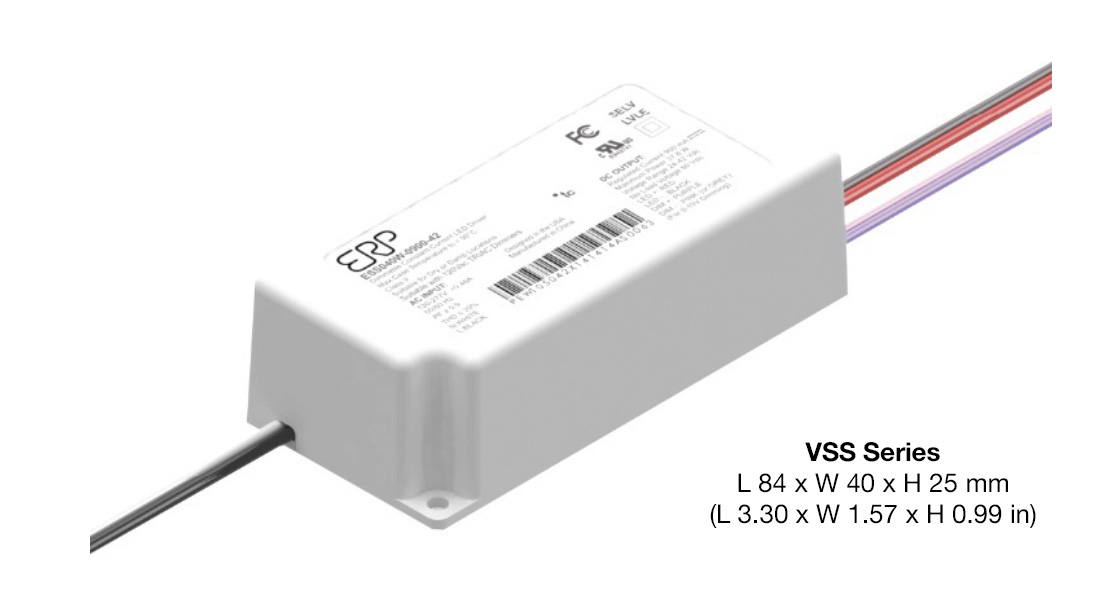

VSS Series
30 & 20 W Compact CV Class 2 LED Driver with Tri-Mode Dimming™ (TRIAC, ELV, & 0-10 V)
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 - 277 Vac | 30 W | 24 Vdc | 700 - 1050 mA | Up to 85% typical | < 20% | 90°C (measured at the hot spot) | > 0.9 | Forward Phase, Reverse Phase, & 0 - 10 V | 1-100% (0-10 V) 10%-100% (Phase-cut) | 400 ms typical |
Features:
- Same footprint as the popular ESS series
- Compatible with TRIAC (forward-phase or leading-edge), ELV (reverse phase or trailing-edge) and 0-10 V dimmers
- IP64-rated case with silicone-based potting
- Class 2 power supply
- 90℃ maximum case hot spot temperature
- Surge protection:
- IEC61000-4-5: 2 kV line to line/2 kV line to earth
- 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®), and CA Title 24 technical requirements
Applications:
- Cove Lights
- Linears
- Pendants
- Strip Lights
| ERP Part Number | Nominal Input Voltage (Vac) |
Max Output Current (mA) | Power (W) | Output Voltage (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| VSS030W-24 | 120 - 277 | 1050 | 25.2 | 0 - 26 | Plastic Case | For/Rev Phase & 0-10V | production | Check > |
| VSS020W-24 | 120 - 277 | 700 | 16.8 | 0 - 24 | Plastic Case | For/Rev Phase & 0-10V | production | Check > |
