Light Engine Accessory Guide
ERP’s Bianco and Araya family of LED Light Engines are a powerful solution for a wide array of lighting applications. As a result, these products have numerous accessory options to meet the requirements of these different applications.

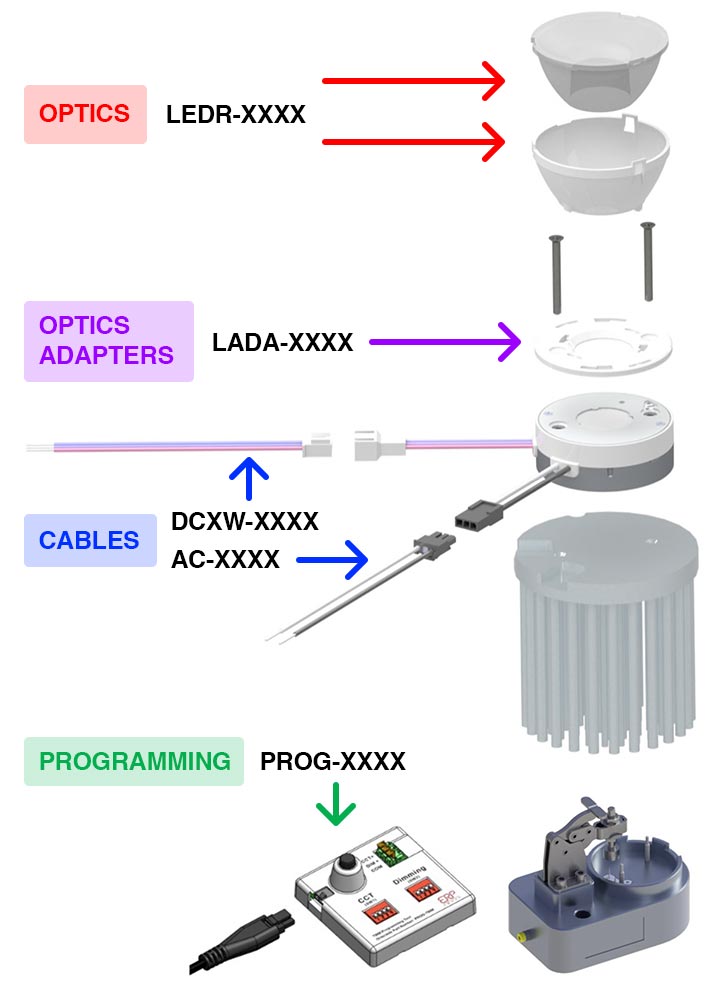

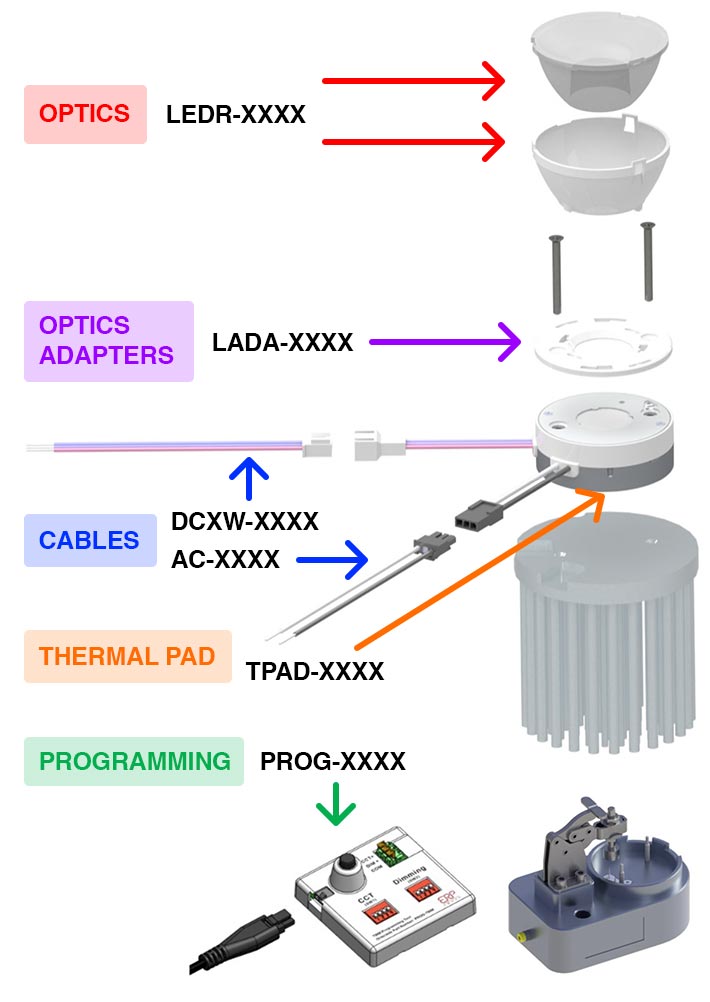

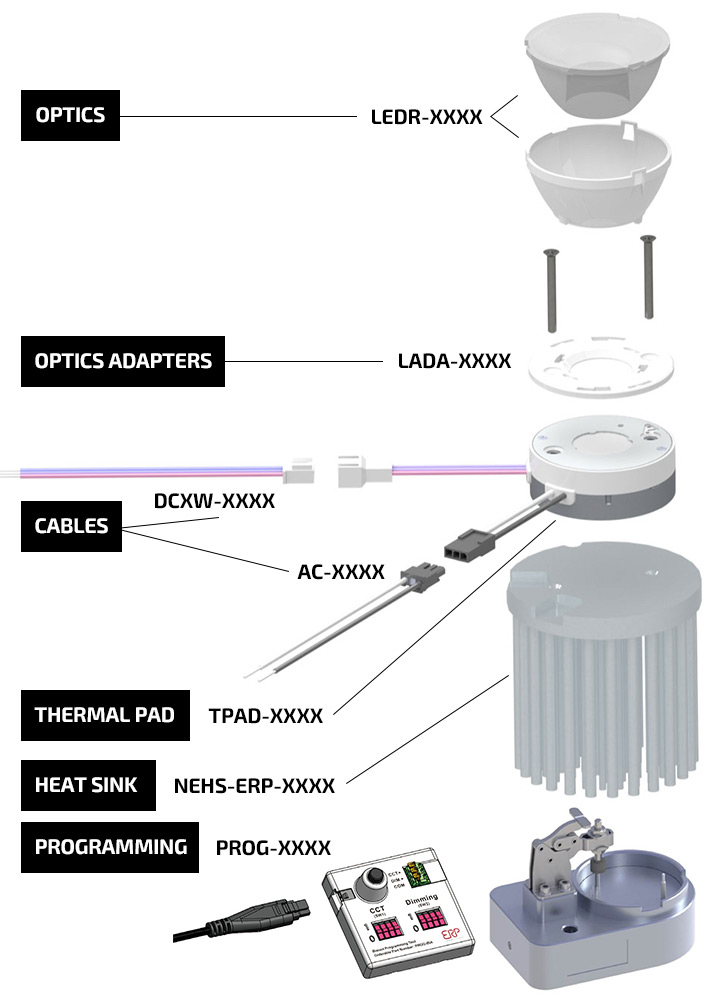

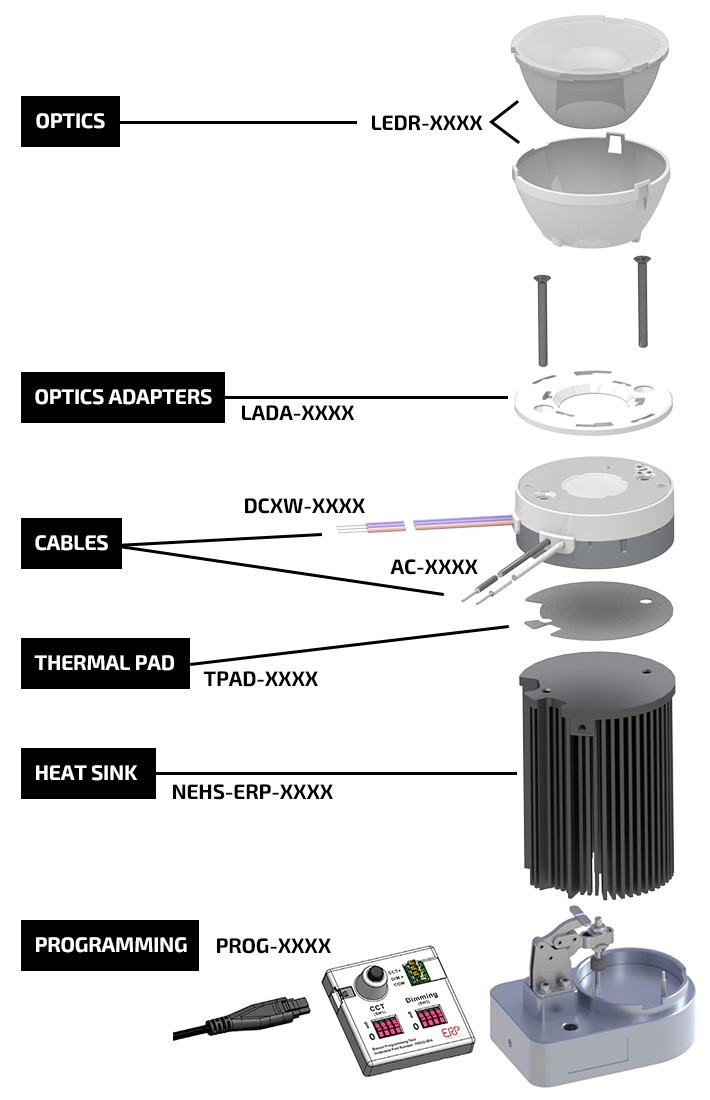

The purpose of this guide is to outline all the accessories, what engines they are compatible with, and what functionality would necessitate the use of each accessory.
ERP has partnered with New Energy to develop heat sinks and thermal pads designed specifically for use with ERP Light Engines. Their products provide exceptional thermal management while unlocking maximum freedom in fixture design.
Optics
✓ Optional✓ Conditional Requirement✓ Required
Optics
Accessory P/N
LEDR-BIA65-DK6832-36
LEDR-BIA50-DK5024-15
LEDR-BIA50-DK5024-24
LEDR-BIA50-DK6230-36
LEDR-BIA50-DKA5024-36
LEDR-BIA28-ZG2813-36
LEDR-BIA50-MN5024-24
LEDR-BIA50-MN5024-50
Accessory Description
68 mm OD DK lens, 36 degree for Bianco 65 mm, with Holder
50 mm OD (Outside Diameter) DK lens, 15 degree for Bianco 50 mm, with Holder
50 mm OD DK lens, 24 degree for Bianco 50 mm, with Holder
62 mm OD DK lens, 36 degree for Bianco 50 mm, with Holder
50 mm OD DKA lens, 36 degree for Bianco 50 mm, with Holder
28 mm OD ZG lens, 36 degree for Bianco 28 mm, with Holder
50 mm OD MN lens, 24 degree for Bianco 50 mm, with Holder
50 mm OD MN lens, 50 degree for Bianco 50 mm, with Holder
Usage Criteria
Fixture will use 50 mm OD DK lens
Light Engine Base Part #
TWM2-32-26
SWM2-18-50
SWC-B6522W
✓
TWM1-19-14
✓
TWM1-19-20
✓
TWM1-12-16
✓
TWM1-09-14
✓
TWC-A5019W
✓
TWC-A5012W
✓
TWC-A5009W
✓
SWM1-19-19
✓
SWM1-12-16
✓
SWM1-09-12
✓
SWC-B5018W
✓
SWC-B2806W
✓
SWC-B2810W
✓
AWM1-19-20
✓
AWM1-12-16
✓
TDC-A5019W
✓
TDC-A5012W
✓
-
ERP does not offer optics compatible with the TWM2 or SWM2 series.
Optics Adapters
✓ Optional✓ Conditional Requirement✓ Required
Optics Adapters
Accessory P/N
LADA-BIA65-LEDIL
LLADA-BIA65-NATA
LADA-BIA50-19-TIRA
LADA-BIA50-12-TIRA
LADA-BIA50-09-TIRA
Accessory Description
Optic adapter for Ledil Reflectors
Optic adapter for Nata Reflectors
Optic adapter for Bridgelux, Nata and Herculux lens for 19 mm LES
Optic adapter for Bridgelux, Nata and Herculux lens for 12 mm LES
Optic adapter for Bridgelux, Nata and Herculux lens for 9 mm LES
Usage Criteria
Fixture will use Ledil Optics
Fixture will use Nata optics
Fixture will be paired with 1 of ERP offered lenses. Required if using any of the ERP offered lens options when labeled "CR"
Light Engine Base Part #
TWM2-32-26
✓
✓
SWM2-18-50
✓
✓
SWC-B6522W
TWM1-19-14
✓
TWM1-19-20
✓
TWM1-12-16
✓
✓
TWM1-09-14
✓
✓
✓
TWC-A5019W
✓
TWC-A5012W
✓
✓
TWC-A5009W
✓
✓
✓
SWM1-19-19
✓
SWM1-12-16
✓
✓
SWM1-09-12
✓
✓
✓
SWC-B5018W
SWC-B2806W
SWC-B2810W
AWM1-19-20
✓
AWM1-12-16
✓
✓
TDC-A5019W
✓
TDC-A5012W
✓
✓
- Optical Holders for the TWM2 and SWM2 series allow the Light Engine to interface with a compatible Ledil or Nata reflector (purchased separately).
- If using an ERP optic from page 2, TWM1, TWC, SWM1, AWM1, and TWC will require the associated compatible holder.
- A larger diameter LES optic adapter (LADA) can be used on a smaller LES light engine; however, a smaller diameter LADA cannot be used on light engines with a larger LES
Cables
✓ Optional✓ Conditional Requirement✓ Required
Cables
Accessory P/N
AC-BIA-NA-610
AC-BIA-NA
AC-BIA-NA-100
AC-BIA-NAQD
AC-NAQD-FL
Accessory Description
AC cable 610 mm (24 in.)
AC cable 400 mm (15.74 in.)
AC cable 100 mm (3.94 in.)
AC cable 400 mm (15.74 in.) with Quick Disconnect (QD)
AC cable 400 mm (15.74 in.) with Quick Disconnect (QD) & Flying Leads (FL)
Usage Criteria
Fixture is field replaceable
Light Engine Base Part #
TWM2-32-26
1 of the above required
✓
SWM2-18-50
1 of the above required
✓
SWC-B6522W
1 of the above required
✓
TWM1-19-14
1 of the above required
✓
TWM1-19-20
1 of the above required
✓
TWM1-12-16
1 of the above required
✓
TWM1-09-14
1 of the above required
✓
TWC-A5019W
1 of the above required
✓
TWC-A5012W
1 of the above required
✓
TWC-A5009W
1 of the above required
✓
SWM1-19-19
1 of the above required
✓
SWM1-12-16
1 of the above required
✓
SWM1-09-12
1 of the above required
✓
SWC-B5018W
1 of the above required
✓
SWC-B2806W
1 of the above required
✓
SWC-B2810W
1 of the above required
✓
AWM1-19-20
1 of the above required
✓
AWM1-12-16
1 of the above required
✓
TDC-A5019W
1 of the above required
✓
TDC-A5012W
1 of the above required
✓
- At least 1 AC power cable is required per Light Engine, and the type of AC cable is dependent on customer requirements. If the fixture is intended to be field replaceable, ERP recommends ordering each Light Engine with 1 AC-BIA-NAQD and 1 ACNAQD-FL.
Cables (cont.)
✓ Optional✓ Conditional Requirement✓ Required
DC Cables
Accessory P/N
DC3W-TWM2-NA
DC3W-BIA-NA
DC3W-BIA-NA-400
DC2W-BIA-NA-610
DC2W-BIA-NA
DC3W-DMX-NA
DC3W-DMX-NA-400
Accessory Description
3 wire DC control cable for TWM2, 400 mm (15.74 in.)
3 wire DC control cable, 100 mm (3.94 in.)
3 wire DC control cable, 400 mm (15.74 in.)
2 wire DC control, 610 mm (24 in.)
2 wire DC control, 100 mm (3.94 in.)
3 wire DMX DC control cable for AWM1, 100 mm (3.94 in.)
3 wire DMX DC control cable for AWM1, 400 mm (15.74 in.)
Usage Criteria
Fixture will utilize 0-10 V dimming or 0-10 V CCT control
Fixture will utilize 0-10 V dimming
Light Engine Base Part #
TWM2-32-26
✓
SWM2-18-50
✓
✓
SWC-B6522W
✓
✓
TWM1-19-14
✓
✓
TWM1-19-20
✓
✓
TWM1-12-16
✓
✓
TWM1-09-14
✓
✓
TWC-A5019W
TWC-A5012W
TWC-A5009W
SWM1-19-19
✓
✓
SWM1-12-16
✓
✓
SWM1-09-12
✓
✓
SWC-B5018W
✓
✓
SWC-B2806W
✓
✓
SWC-B2810W
✓
✓
AWM1-19-20
✓
✓
AWM1-12-16
✓
✓
TDC-A5019W
TDC-A5012W
- Light Engines will need a DC control cable if the fixture is intended to either be dimmed using 0-10 V dimming or will utilize 0-10 V CCT control. Static white and warm dim applications intended for use with TRIAC or ELV dimming do not require a DC control cable.
- The AWM1 requires the DC3W-DMX-NA cable assembly as it is only compatible with DMX dimming.
Thermal Pads
Supplied by:
✓ Optional✓ Conditional Requirement✓ Required
Thermal Pad
Accessory P/N
TPAD-BIA65
TPAD-BIA50
NETP-ERP-65-000
NETP-ERP-65-001
NETP-ERP-50-000
NETP-ERP-50-001
NETP-ERP-28-000
NETP-ERP-28-001
Accessory Description

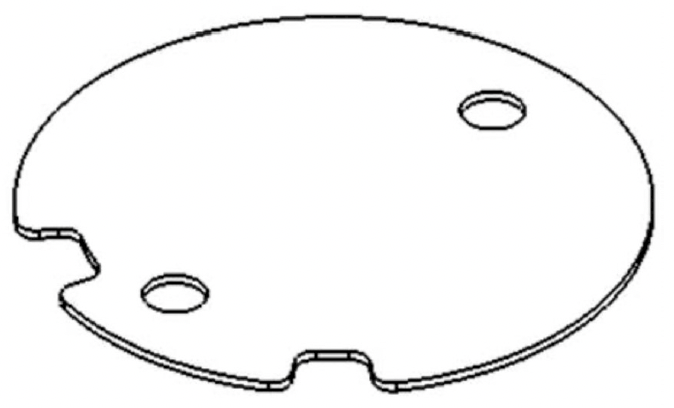

Bianco 65 mm Thermal Pad, 1 mm thick, 5 W/mK

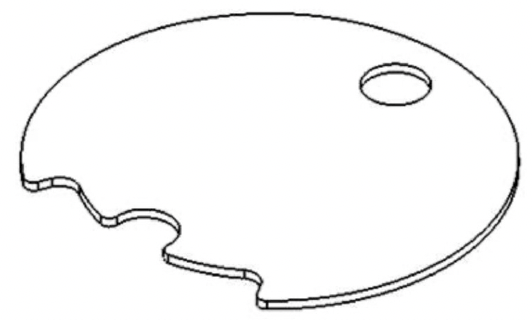

Bianco 50 mm Thermal Pad, 1 mm thick, 5 W/mK
New Energy Thermal Pad for 65 mm Engines, Bottom Lead cutout, 0.3 mm thick, 3 W/mK
New Energy Thermal Pad for 65 mm Engines, NO Bottom Lead cutout, 0.3 mm thick, 3 W/mK
New Energy Thermal Pad for 50 mm Engines, Bottom Lead cutout, 0.3 mm thick, 3 W/mK
New Energy Thermal Pad for 50 mm Engines, NO Bottom Lead cutout, 0.3 mm thick, 3 W/mK
New Energy Thermal Pad for 28 mm Engines, Bottom Lead cutout, 0.3 mm thick, 3 W/mK
New Energy Thermal Pad for 28 mm Engines, NO Bottom Lead cutout, 0.3 mm thick, 3 W/mK
Usage Criteria
Required unless using alternative thermal conducting solution such as grease or alternative thermal pad. Side lead variants should use "-001" part numbers and bottom lead variants should use "-000" part numbers.
Light Engine Base Part #
TWM2-32-26
✓
✓
✓
SWM2-18-50
✓
✓
✓
SWC-B6522W
✓
✓
✓
TWM1-19-14
✓
✓
✓
TWM1-19-20
✓
✓
✓
TWM1-12-16
✓
✓
✓
TWM1-09-14
✓
✓
✓
TWC-A5019W
✓
✓
✓
TWC-A5012W
✓
✓
✓
TWC-A5009W
✓
✓
✓
SWM1-19-19
✓
✓
✓
SWM1-12-16
✓
✓
✓
SWM1-09-12
✓
✓
✓
SWC-B5018W
✓
✓
✓
SWC-B2806W
✓
✓
SWC-B2810W
✓
✓
AWM1-19-20
✓
✓
✓
AWM1-12-16
✓
✓
✓
TDC-A5019W
✓
✓
✓
TDC-A5012W
✓
✓
✓
- The programming tool PROG-BIA is only compatible with the TWM2 and TWM1 series. ERP recommends one PROG-BIA per assembly line, and to use either the PROG-BIA65-CBL or PROG-BIA50-CBL as a consumable resource for programming Light Engines.
TPAD-BIA65
TPAD-BIA50
Heat Sinks
Supplied by:
✓ Optional✓ Conditional Requirement✓ Required
Heat Sink
Accessory P/N
NEHS-ERP-65-000
NEHS-ERP-65-001
NEHS-ERP-50-000
NEHS-ERP-50-001
NEHS-ERP-28-000
NEHS-ERP-28-001
Accessory Description
New Energy Heat Sink for 65 mm Engines, Bottom Lead cutout
New Energy Heat Sink for 65 mm Engines, NO Bottom Lead cutout
New Energy Heat Sink for 50 mm Engines, Bottom Lead cutout
New Energy Heat Sink for 50 mm Engines, NO Bottom Lead cutout
New Energy Heat Sink for 28 mm Engines, Bottom Lead cutout
New Energy Heat Sink for 28 mm Engines, NO Bottom Lead cutout
Usage Criteria
Required unless using alternative heat sink or fixture chassis heat sinking. Side lead variants should use "-001" part numbers
and bottom lead variants should use "-000" part numbers.
Light Engine Base Part #
TWM2-32-26
✓
✓
SWM2-18-50
✓
✓
SWC-B6522W
✓
✓
TWM1-19-14
✓
✓
TWM1-19-20
✓
✓
TWM1-12-16
✓
✓
TWM1-09-14
✓
✓
TWC-A5019W
✓
✓
TWC-A5012W
✓
✓
TWC-A5009W
✓
✓
SWM1-19-19
✓
✓
SWM1-12-16
✓
✓
SWM1-09-12
✓
✓
SWC-B5018W
✓
✓
SWC-B2806W
✓
✓
SWC-B2810W
✓
✓
AWM1-19-20
✓
✓
AWM1-12-16
✓
✓
TDC-A5019W
✓
✓
TDC-A5012W
✓
✓
- The programming tool PROG-BIA is only compatible with the TWM2 and TWM1 series. ERP recommends one PROG-BIA per assembly line, and to use either the PROG-BIA65-CBL or PROG-BIA50-CBL as a consumable resource for programming Light Engines.
Programming
✓ Optional✓ Conditional Requirement✓ Required
Programming
Accessory P/N
PROG-BIA65-CRADLE
PROG-BIA50-CRADLE
PROG-CAS50-CRADLE
PROG-JACK-USB
PROG-BIA
PROG-BIA-CBL
PROG-TWM2-CBL
Accessory Description
Bianco 65 mm Programming Cradle
Bianco 50 mm Programming Cradle
Bianco 50 mm Programming Cradle for Casambi Enabled Engines
USB to 3.5 mm Audio Jack Programming Cable
Bianco Programming Tool
Bianco 50 mm Programming Cable
TWM2 Programming Cable
Usage Criteria
Engine will need Programming during Fixture Assembly. Not needed per Engine
Required for use with programming cradle
Engine will need programming during assembly. Not needed per engine. Cable required if using Bianco Programming Tool
Light Engine Base Part #
TWM2-32-26
✓
✓
SWM2-18-50
✓
SWC-B6522W
TWM1-19-14
✓
✓
✓
✓
TWM1-19-20
✓
✓
✓
✓
TWM1-12-16
✓
✓
✓
✓
TWM1-09-14
✓
✓
✓
✓
TWC-A5019W
✓
✓
TWC-A5012W
✓
✓
TWC-A5009W
✓
✓
SWM1-19-19
✓
✓
SWM1-12-16
✓
✓
SWM1-09-12
✓
✓
SWC-B5018W
SWC-B2806W
SWC-B2810W
AWM1-19-20
✓
✓
AWM1-12-16
✓
✓
TDC-A5019W
✓
✓
AWM1-12-16
✓
✓
- The programming cradle PROG-BIA65-CRADLE is only compatible with the SWM2 series. PROG-BIA50-CRADLE is compatible with the TWM1, SWM1, and AWM1 series.
- The programming tool PROG-BIA is only compatible with the TWM2 and TWM1 series. ERP recommends one PROG-BIA per assembly line, and to use either the PROG-TWM2-CBL or PROG-BIA-CBL as a consumable resource for programming Light Engines.
