Constant Voltage LED Drivers
VLM Series
40 W, 60 W, and 96 W Efficient, Compact and Non-Dimmable Constant Voltage Class 2 / Class II LED Drivers
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 & 277 Vac, 220 to 240 Vac | 96 W | 12, 24, 48 Vdc | 8, 4, 2 A (VLM100); 5, 2.5, 1.25 A (VLM40 & VLM60) | Up to 92% (VLM100), up to 90% (VLM40 & VLM60) | < 20% | 90 °C (measured at the hot spot) | > 0.9 | No dimming | N/A | 500 ms max |
Features:
- VLM100: Very high power density of 24 W/in3
- VLM60/40: Very high power density of 20 W/in3
- Class 2 power supply (except for VLM100W-12)
- Class II power supply per IEC 61347
- IP20-rated case with silicone-based potting
- 90 °C maximum case hot spot temperature
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
- Lifetime: 50,000 hours min at 70 °C case temperature
- UL Class P
- Worldwide safety approvals
- Additional safety approvals when using the optional strain reliefs for models with “-T” suffix
Case Dimensions:

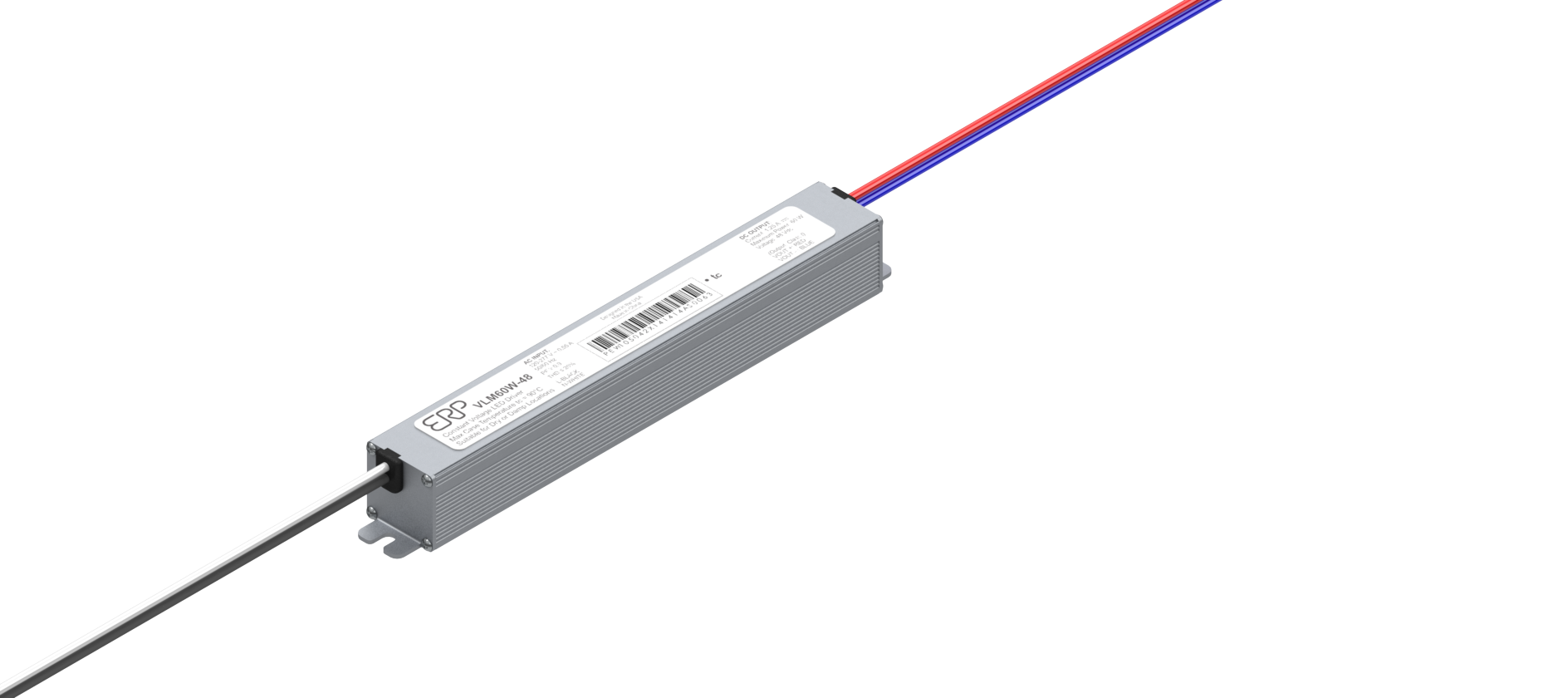

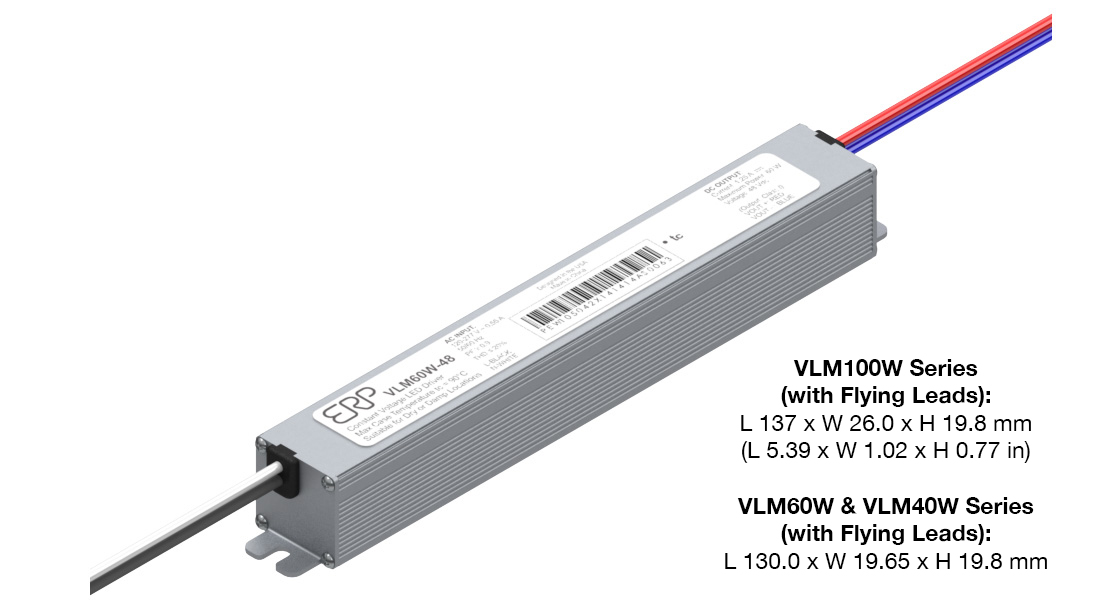

- VLM100W Models (Flying Leads): L 137 x W 26.0 x H 19.8 mm (L 5.39 x W 1.02 x H 0.77 in)
- VLM100E Models (Flying Leads): L 151 x W 26.0 x H 19.8 mm (L 5.94 x W 1.03 x H 0.78 in)
- VLM100E Models with "T" Suffix (Terminal Blocks): L 193.2 x W 26.2 x H 19.85 mm (L 7.60 x W 1.03 x H 0.78 in)

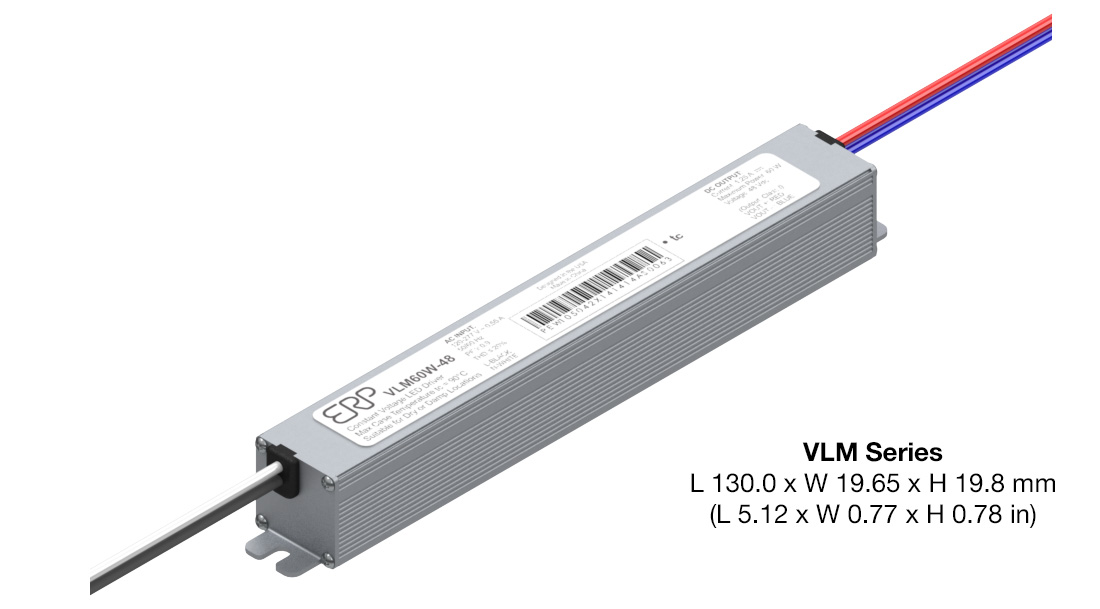

- VLM60W & VLM40W Models (Flying Leads): L 130.0 x W 19.65 x H 19.8 mm (L 5.12 x W 0.77 x H 0.78 in)
- VLM60E Models (Flying Leads): L 141 x W 19.7 x H 19.8 mm (L 5.55 x W 0.78 x H 0.78 in)
- VLM60E & VLM40E Models with "T" Suffix (Terminal Blocks): L 183.2 x W 19.9 x H 19.85 mm (L 7.12 x W 0.78 x H 0.78 in)
Applications:
- Cove Lights
- Linears
- Pendants
- Strip Lights
| ERP Part Number | Nominal Input Voltage (Vac) |
Max Output Current (mA) | Power (W) | Output Voltage (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| VLM100W-12 | 120 & 277 | 8000 | 96.0 | 12 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100W-24 | 120 & 277 | 4000 | 96.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100W-36 | 120 & 277 | 2700 | 96.0 | 36 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100W-48 | 120 & 277 | 2000 | 96.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100E-24 | 220 to 240 | 4000 | 96.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100E-48 | 220 to 240 | 2000 | 96.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100E-24-T | 220 to 240 | 4000 | 96.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM100E-48-T | 220 to 240 | 8000 | 96.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM40W-12 | 120 & 277 | 3300 | 40.0 | 12 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM40W-24 | 120 & 277 | 1670 | 40.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM40W-48 | 120 & 277 | 830 | 40.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60W-12 | 120 & 277 | 5000 | 60.0 | 12 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60W-24 | 120 & 277 | 2500 | 60.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60W-36 | 120 & 277 | 1670 | 60.0 | 36 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60W-48 | 120 & 277 | 1250 | 60.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM40E-24-T | 220 to 240 | 1670 | 40.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM40E-48-T | 220 to 240 | 830 | 40.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60E-24 | 220 to 240 | 2500 | 60.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60E-24-T | 220 to 240 | 2500 | 60.0 | 24 | IP20 Rectangular Metal | No dimming | production | Check > |
| VLM60E-48-T | 220 to 240 | 1250 | 60.0 | 48 | IP20 Rectangular Metal | No dimming | production | Check > |
Notes:
- VLM100W-12 is not Class 2 because the over-current protection of this model exceeds the 8A UL Class 2 limit.
- Suffix for the different mounting options:
- 1. No suffix = flying leads
- 2. "-T" = European terminal blocks.
- For additional options of output current and output voltage, contact your sales representative or contact us via email.
