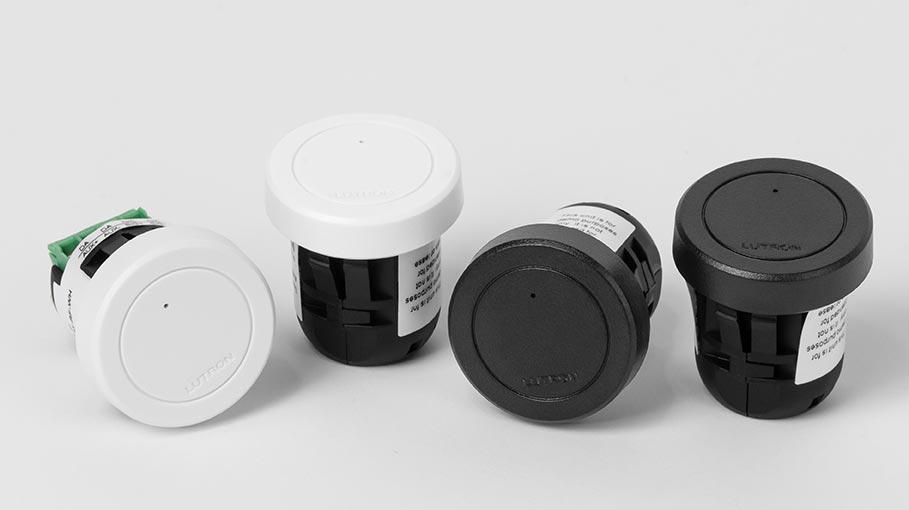

COIN-SIZED CONTROL
The Athena Wireless Node (AWN) delivers 0-10V wireless flexibility, advanced performance, and exceptional lighting control to lighting systems.
- Compatible with 0-10V ERP CC and CV LED drivers (see full list below)
- Wireless flexibility eliminates the need for rewiring when making design changes
- Cloud connected for automatic software upgrades
- Integrated apps provide building management insights and flexible fixture control
- Correlated color temperature functionality synchronizes with daylight
The Athena Wireless Node can be used with downlights, troffers, and linear, track, or decorative lighting.
LED DRIVER COMPATIBILITY REFERENCE
The following Constant Current and Constant Voltage drivers are compatible with AWN, and are programmable dim-to-off for compliance with ANSI C.137.1.
DRIVER COMPATIBILITY REFERENCE - LUTRON AWN
CONSTANT CURRENT LED DRIVERS
0–10 V (WITH AUXILIARY OUTPUT)
Constant Current drivers listed below are programmable dim-to-off for compliance with ANSI C137.1.
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
Notes |
|---|---|---|---|---|---|---|---|---|---|
|

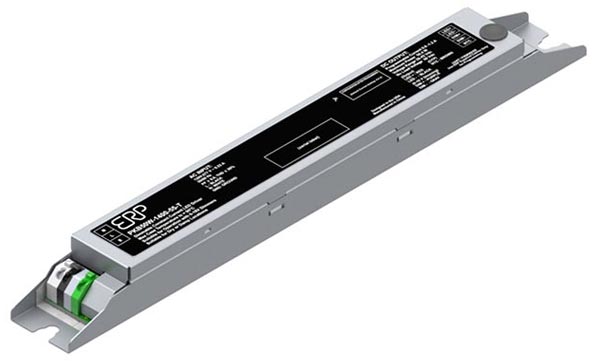

PLS
|
120–277 | PLS-A20W-07-55-TZ | 20 | 100 to 700 | 10 to 55 |
257 x 29.4 x 25.4 (mm) 10.1 x 1.2 x 1.0 (in.) |
Programmable 0–10 V |
Yes | Provided with Auxiliary Output |
| PLS-A30W-10-55-TZ | 30 | 275 to 1050 | 10 to 55 | ||||||
| PLS-A50W-14-55-TZ | 50 | 500 to 1400 | 10 to 55 | ||||||
| PLS-A65W-18-55-TZ | 65 | 600 to 1800 | 10 to 55 | ||||||
| PLS-B85W-23-55-TZ | 85 | 700 to 2300 | 10 to 55 | ||||||
| PLS-B95W-27-55-TZ | 95 | 900 to 2750 | 10 to 55 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
Notes |
|---|---|---|---|---|---|---|---|---|---|
|

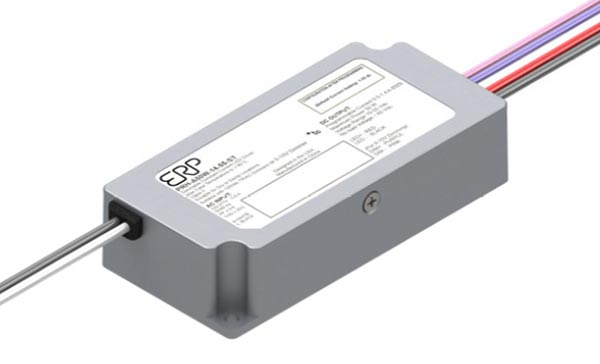

PRH
|
120–277 | PRH-A20W-07-55-SXZ | 20 | 100 to 700 | 10 to 55 |
84 x 40 x 19.25 (mm) 3.30 x 1.57 x 0.76 (in.) |
Programmable 0–10 V |
Yes |
Provided with Auxiliary Output |
| PRH-A30W-10-55-SXZ | 30 | 275 to 1050 | 10 to 55 | ||||||
| PRH-A50W-14-55-SXZ | 50 | 500 to 1400 | 10 to 55 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
Notes |
|---|---|---|---|---|---|---|---|---|---|
|
PLH
![PLH constant current driver](/wp-content/uploads/2026/04/thumbnail-athena_plh.jpg")
|
120–277 | PLH-A20W-07-55-SXZ | 20 | 100 to 700 | 10 to 55 |
197.4 x 19.65 x 19.25 (mm) 7.77 x 0.77 x 0.76 (in.) |
Programmable 0–10 V |
Yes |
Provided with Auxiliary Output |
| PLH-A30W-10-55-SXZ | 30 | 275 to 1050 | 10 to 55 | ||||||
| PLH-A50W-14-55-SXZ | 50 | 500 to 1400 | 10 to 55 | ||||||
| PLH-A65W-18-55-SXZ | 65 | 600 to 1800 | 10 to 55 |
Athena Wireless Node (AWN) Wiring Guide:
| Athena Connector Description |
ERP LED Driver Wiring |
|---|---|
| 1: AUX+ | +Aux (Yellow) |
| 2: AUX- | -Aux (Brown) |
| 3: SIG+ | +Dim (Purple) |
| 4: SIG-/DGND | -Dim (Pink) |

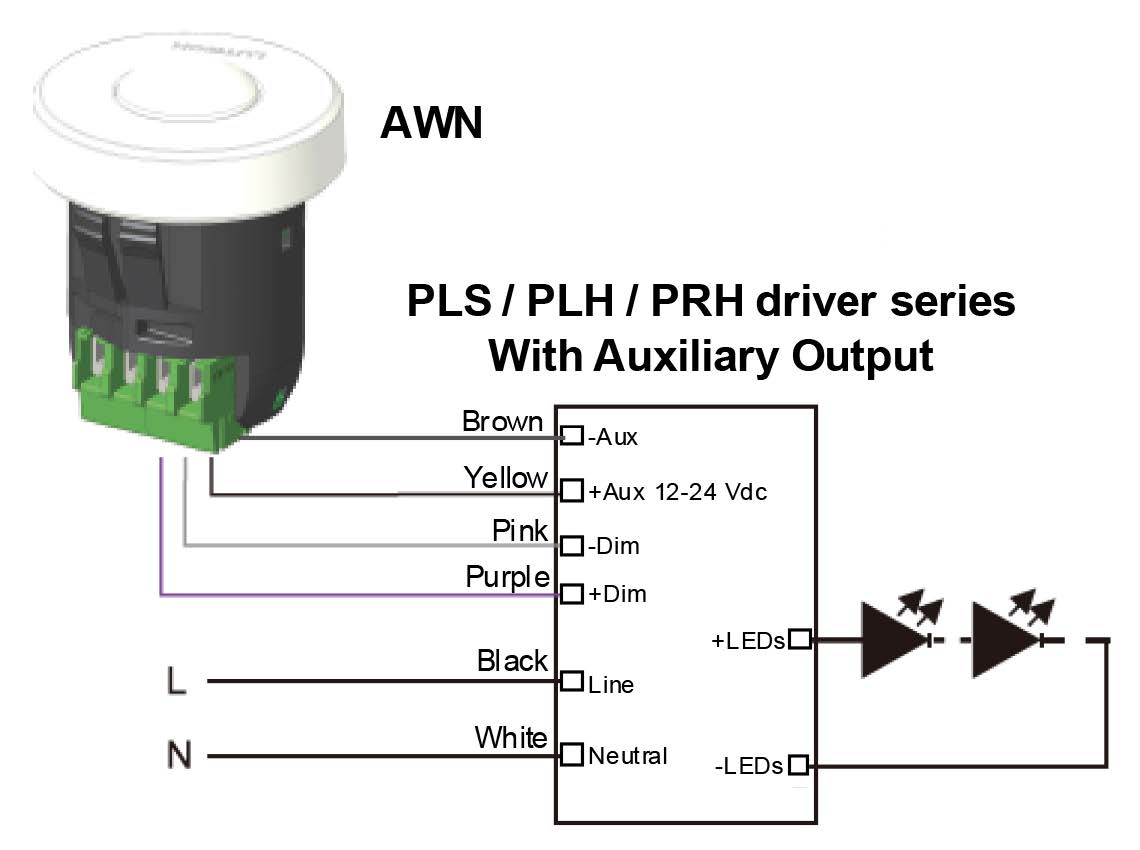

Connecting an AWN to an ERP LED Driver with Auxiliary Output (e.g. PLS, PLH, PRH series):
- Connect the AUX+ of AWN to the +Aux (yellow) wire of the ERP LED Driver
- Connect the AUX- of AWN to the -Aux (brown) wire of the ERP LED Driver
- Connect the SIG+ of AWN to the +Dim (purple) of the ERP LED Driver
- Connect the SIG- of AWN to the –Dim (pink) of the ERP LED Driver
DRIVER COMPATIBILITY REFERENCE - LUTRON AWN
CONSTANT CURRENT LED DRIVERS
0–10 V (WITHOUT AUXILIARY OUTPUT)
Constant Current drivers listed below are programmable dim-to-off for compliance with ANSI C137.1.
NOTE: ERP recommends that the Fixture OEM should include Lutron DFC-OEM-DBI DALI Bus power supply.
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
|---|---|---|---|---|---|---|---|---|
|
PLS
|
120–277 | PLS-A20W-07-55-TZ | 20 | 100 to 700 | 10 to 55 |
257 x 29.4 x 25.4 (mm) 10.1 x 1.2 x 1.0 (in.) |
Programmable 0–10 V |
Yes |
| PLS-A30W-10-55-TZ | 30 | 275 to 1050 | 10 to 55 | |||||
| PLS-A50W-14-55-TZ | 50 | 500 to 1400 | 10 to 55 | |||||
| PLS-A65W-18-55-TZ | 65 | 600 to 1800 | 10 to 55 | |||||
| PLS-B85W-23-55-TZ | 85 | 700 to 2300 | 10 to 55 | |||||
| PLS-B95W-27-55-TZ | 95 | 900 to 2750 | 10 to 55 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
|---|---|---|---|---|---|---|---|---|
|
PRH
|
120–277 | PRH-A20W-07-55-SZ | 20 | 100 to 700 | 10 to 55 |
84 x 40 x 19.25 (mm) 3.30 x 1.57 x 0.76 (in.) |
Programmable 0–10 V |
Yes |
| PRH-A30W-10-55-SZ | 30 | 275 to 1050 | 10 to 55 | |||||
| PRH-A50W-14-55-SZ | 50 | 500 to 1400 | 10 to 55 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
|---|---|---|---|---|---|---|---|---|
|
PLH
|
120–277 | PLH-A20W-07-55-SZ | 20 | 100 to 700 | 10 to 55 |
197.4 x 19.65 x 19.25 (mm) 7.77 x 0.77 x 0.76 (in.) |
Programmable 0–10 V |
Yes |
| PLH-A30W-10-55-SZ | 30 | 275 to 1050 | 10 to 55 | |||||
| PLH-A50W-14-55-SZ | 50 | 500 to 1400 | 10 to 55 | |||||
| PLH-A65W-18-55-SZ | 65 | 600 to 1800 | 10 to 55 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
|---|---|---|---|---|---|---|---|---|
|
PTB
|
120–277 | PTB10W-0250-42-ZN | 10.5 | 150 to 250 | 28 to 42 |
70 x 40 x 29.5 (mm) 2.76 x 1.57 x 1.16 (in.) |
Programmable 0–10 V |
Yes |
| PTB20W-0420-42-ZN | 17.6 | 250 to 420 | 28 to 42 | |||||
| PTB30W-0700-42-ZN | 29.4 | 420 to 700 | 28 to 42 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
Notes |
|---|---|---|---|---|---|---|---|---|---|
|

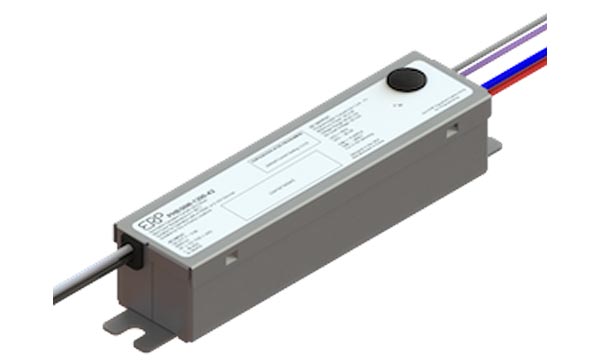

PHB
Side Leads
Bottom Leads with Studs
|
120–277 | PHB15W-0300-34 | 10.2 | 150 to 300 | 23 to 34 |
132.2 x 30.6 x 20.7 (mm) 4.07 x 1.03 x 0.94 (in.) |
Programmable 0–10 V |
Yes |
Side Leads |
| PHB30W-0500-42 | 21 | 250 to 500 | 28 to 42 | ||||||
| PHB30W-0700-42 | 29.4 | 350 to 700 | 28 to 42 | ||||||
| PHB30W-0700-34 | 23.8 | 350 to 700 | 23 to 34 | ||||||
| PHB50W-0850-56 | 47.6 | 425 to 850 | 38 to 56 | ||||||
| PHB50W-1200-42 | 50.4 | 600 to 1200 | 28 to 42 | ||||||
| PHB50W-1400-34 | 47.6 | 700 to 1400 | 23 to 34 | ||||||
| PHB30W-0500-42S | 21 | 250 to 500 | 28 to 42 |
132.2 x 30.6 x 20.7 (mm) 4.07 x 1.03 x 0.94 (in.) |
Programmable 0–10 V |
Yes |
Bottom Leads with Studs |
||
| PHB30W-0700-42S | 29.4 | 350 to 700 | 28 to 42 | ||||||
| PHB50W-0850-56 | 47.6 | 425 to 850 | 38 to 56 | ||||||
| PHB50W-1200-42 | 50.4 | 600 to 1200 | 28 to 42 |
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
Notes |
|---|---|---|---|---|---|---|---|---|---|
|

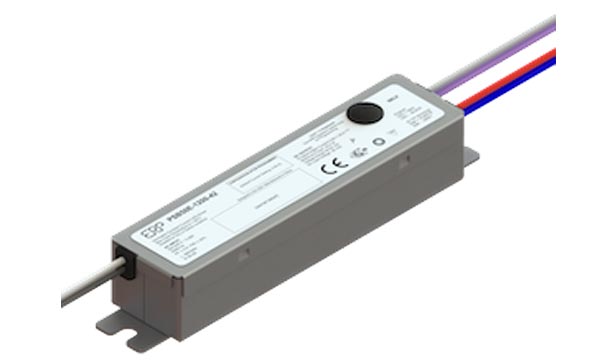

PSB
Side Leads
Bottom Leads with Studs
|
120–277 | PSB15W-0300-38 | 11.4 | 150 to 300 | 26 to 38 |
98.5 x 26.0 x 21.85 (mm) 3.88 x 1.02 x 0.86 (in.) |
Programmable 0–10 V |
Yes |
Side Leads |
| PSB30W-0700-34 | 23.8 | 250 to 500 | 23 to 34 | ||||||
| PSB30W-0700-42 | 29.4 | 350 to 700 | 28 to 42 | ||||||
| PSB30W-1050-27 | 28.4 | 350 to 700 | 18 to 27 | ||||||
| PSB40W-1400-27 | 37.8 | 700 to 1400 | 18 to 27 | ||||||
| PSB50W-0850-56 | 47.6 | 425 to 850 | 38 to 56 | ||||||
| PSB50W-1200-42 | 50.4 | 600 to 1200 | 28 to 42 | ||||||
| PSB50W-1400-34 | 47.6 | 700 to 1400 | 23 to 34 | ||||||
| PSB30W-0700-34-S | 23.8 | 250 to 500 | 23 to 34 |
98.5 x 26.0 x 23.7 (mm) 3.88 x 1.02 x 0.93 (in.) |
Programmable 0–10 V |
Yes |
Bottom Leads with Studs |
||
| PSB30W-0700-42-S | 29.4 | 350 to 700 | 28 to 42 | ||||||
| PSB30W-1050-27-S | 28.4 | 350 to 700 | 18 to 27 | ||||||
| PSB40W-1400-27-S | 37.8 | 700 to 1400 | 18 to 27 | ||||||
| PSB50W-0850-56-S | 47.6 | 425 to 850 | 38 to 56 | ||||||
| PSB50W-1200-42-S | 50.4 | 600 to 1200 | 28 to 42 | ||||||
| PSB50W-1400-34-S | 47.6 | 700 to 1400 | 23 to 34 |
DRIVER COMPATIBILITY REFERENCE - LUTRON AWN
CONSTANT CURRENT LED DRIVERS
DALI D4i
Constant Current drivers listed below are programmable dim-to-off for compliance with ANSI C137.1.
NOTE: ERP recommends that the Fixture OEM should include Lutron DFC-OEM-DBI DALI Bus power supply.
| ERP Constant Current Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Current (mA) |
Output Voltage (Vdc) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
|---|---|---|---|---|---|---|---|---|
|
PLB D4i
|
120–277 | PLB15W-0300-38-D4i | 11.4 | 100 to 300 | 26 to 38 |
223.1 x 18.25 x 18.65 (mm) 8.78 x 0.72 x 0.73 (in.) |
DALI D4i | Yes |
| PLB30W-0600-38-D4i | 22.8 | 300 to 600 | 26 to 38 | |||||
| PLB50W-1200-38-D4i | 45.6 | 600 to 1200 | 26 to 38 |

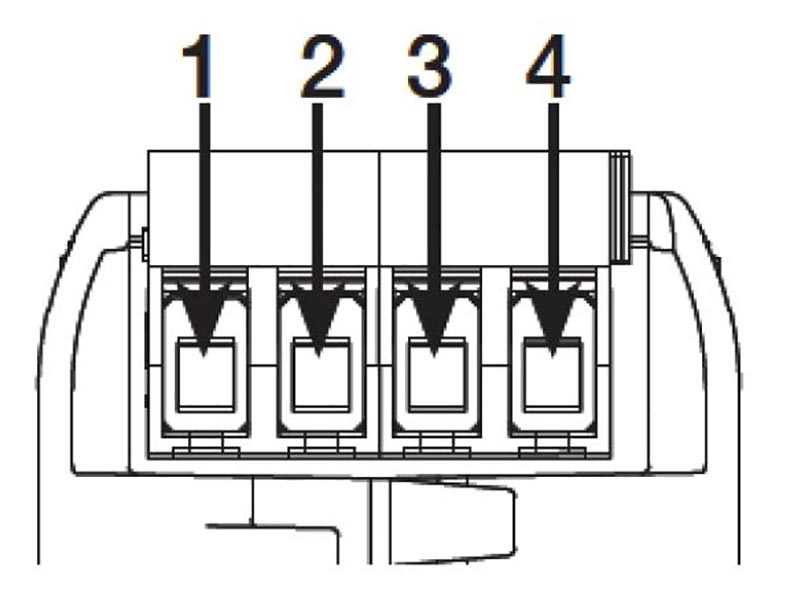

Athena Wireless Node (AWN) Wiring Guide:
| Athena Connector Description DAU Function |
ERP PLB D4i Driver Wiring |
|---|---|
| 1: DA | DAI1+ D4i (Purple) |
| 2: DA | DAI− D4i (Pink) |
| 3: N/C | +Dim (Purple) |
| 4: N/C | −Dim (Pink) |

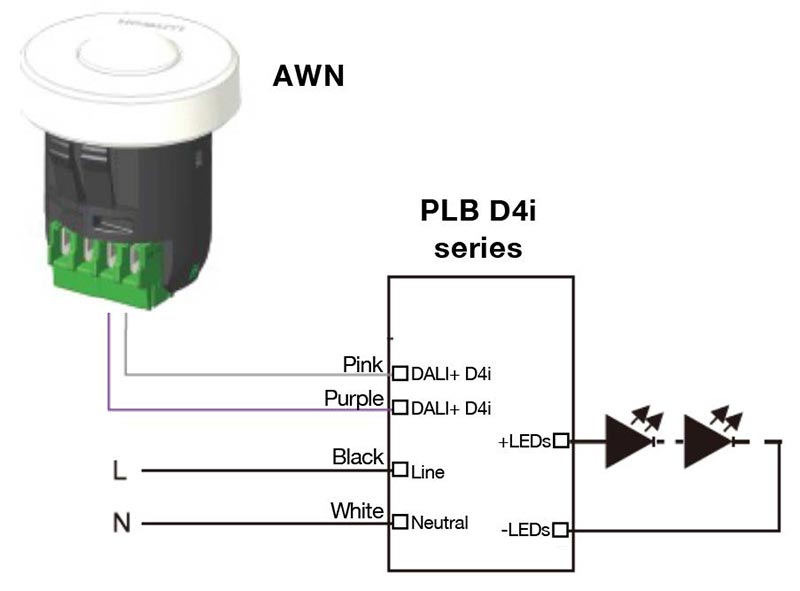

Connecting an AWN to the PLB D4i LED Driver:
- Connect terminal 1 of Athena to the DALI+ D4i (purple) wire of the PLB D4i LED Driver
- Connect terminal 2 of Athena to the DALI- D4i (pink) wire of the PLB D4i LED Driver
DRIVER COMPATIBILITY REFERENCE - LUTRON AWN
CONSTANT VOLTAGE LED DRIVERS
0-10 V
Constant Voltage drivers listed below are programmable dim-to-off for compliance with ANSI C137.1.
NOTE: ERP recommends that the Fixture OEM should include Lutron DFC-OEM-DBI DALI Bus power supply.
| ERP Constant Voltage Driver Series |
Input Voltage (Vac) |
ERP Part Number | Max. Output Power (W) |
Output Voltage (Vdc) |
Output Current (A) |
Dimensions - L x W x H | Dimming Method | Emergency Support |
Notes |
|---|---|---|---|---|---|---|---|---|---|
|
VZM
|
120 & 277 | VZM060W-24 | 60 | 24 | 0.25 to 2.50 |
150.2 x 38.8 x 24.9 (mm) 5.91 x 1.53 x 0.98 (in.) |
Programmable 0–10 V |
Yes |
Side Leads |
| VZM060W-48 | 60 | 48 | 0.13 to 1.25 | ||||||
| VZM100W-24 | 100 | 24 | 0.38 to 3.75 | ||||||
| VZM100W-48 | 100 | 48 | 0.19 to 1.87 |
