AC input light engines

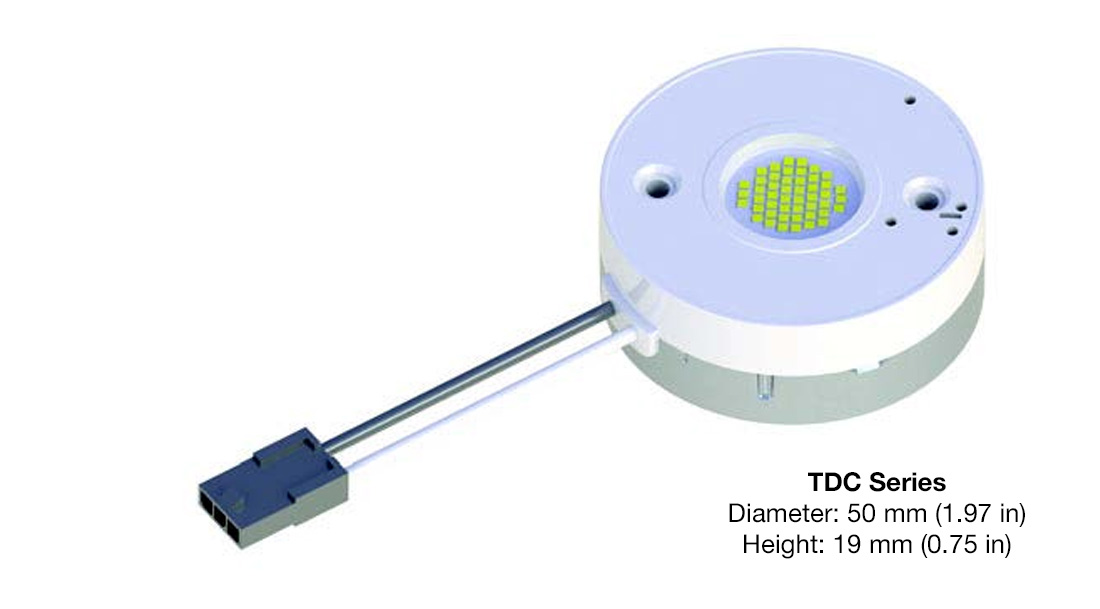

TDC Series
| Input Voltage | Nominal input power | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|
| 120 – 277 Vac | XX W | < 20% | 90℃ | > 0.9 | Casambi | 1–100% | 300 ms typical |
Features:
- Casambi Wireless control
- Integrated AC to DC driver electronics
- Zhaga compliant footprint
- 3 modes of operation: Tunable white, Static, White, Warm Dim
- Designed for fi eld replaceability with front heat sink mounting
- Meets UL8750 Safety-Related Electronics Circuits (SREC) requirements
- Approved for use as thermal cutout for fixture per UL1598
- Configureable maximum light output
- Configureable tunable CCT range
- Warm dim ranges: 3050–1800 K (MR16 Halogen profile) 2700–1800 K (Incandescent profile)
- CA Title 24, IEEE 1789-2015, & Energy Star Compliant
- Compliant Color consistency of < 3 step (2 step typical) MacAdam ellipse
- On board overtemperature protection (OTP) with thermal foldback
- Circadian Rhythm lighting support with a controller
Applications:
- Architectural
- Commercial lighting
- Downlight
- Indoor lighting
| ERP Part Number | LES (Light Emitting Surface) (mm) |
Typical Peak Lumens (lm) |
Nominal Efficacy (lm/W) (@ 4000 K) |
Lumen packing Density (lm/in3) |
Bluetooth LE (BLE) Capability |
Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| TDC-A5019W-20-9-CNS | 19 | 2000 | 95 | No | Casambi | sampling | Check > | |
| TDC-A5012W-13-9-CNS | 12 | 1300 | 95 | No | Casambi | sampling | Check > |
Notes:
There are currently no notes available at this time.
