Constant Current LED Drivers

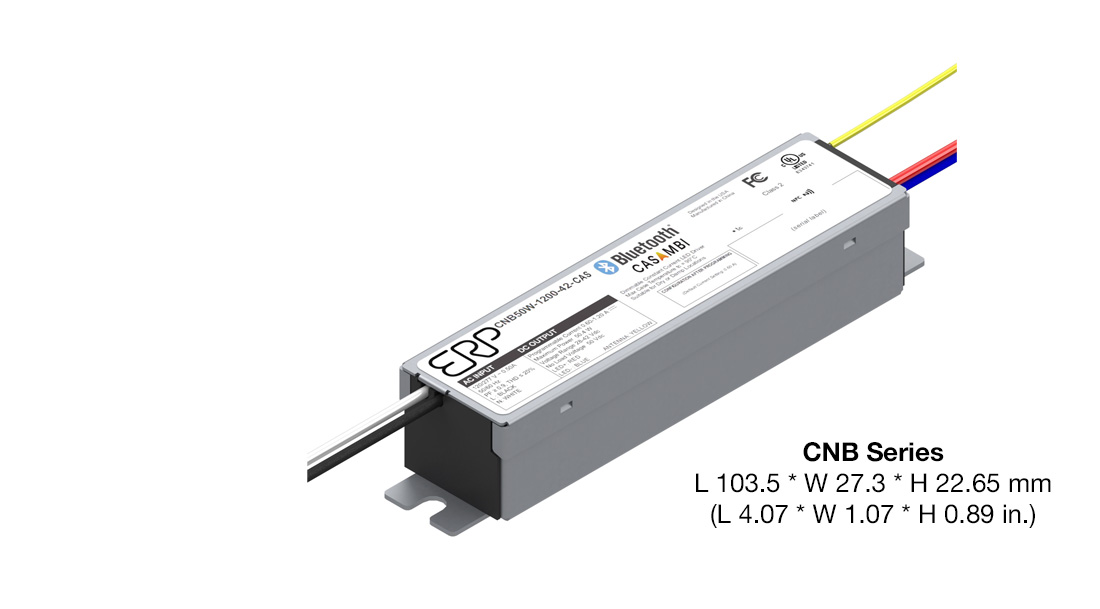

CNB Series
50 & 30 W Programmable CC Class 2 LED Driver with Integrated Bluetooth Mesh
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 & 277 Vac | 50 W | 28 to 42 Vdc | 300 to 1200 mA Constant Current | up to 90% | < 20% | 90℃ (measured at the hot spot) | >0.9 | Bluetooth | 1-100% (% of Iout) | 300 ms typical |
Features:
- UL Class P
- Class 2 power supply
- Compatible with Casambi (-CAS models) or Silvair (-SIL models) controls
- Lifetime: 50,000 hours @ Tc ≤ 75ºC
- 90ºC maximum case hot spot temperature
- IP20-rated case
- Surge protection:
- IEC61000-4-5: 2 kV line to line/2 kV line to earth
- 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Complies with DLC (DesignLight Consortium®) and CA Title 24 technical requirements
- NFC programming
- Current: 100% to 50% in each voltage range
- Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Applications:
- Architectural
- Commercial lighting
- Indoor lighting
- Residential light
| ERP Part Number | Nominal Input Voltage (Vac) |
Output Current (mA) | Power (W) | Voltage Range (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| CNB50W-1200-42-CAS | 120 & 277 | 600 - 1200 | 50.4 | 28 - 42 | IP20 Rectangular Metal | Bluetooth | production | Check > |
| CNB30W-0600-42-CAS | 120 & 277 | 300 to 600 | 25.2 | 28 - 42 | IP20 Rectangular Metal | Bluetooth | production | Check > |
| CNB50W-1200-42-SIL | 120 & 277 | 600 - 1200 | 50.4 | 28 - 42 | IP20 Rectangular Metal | Bluetooth | production | Check > |
| CNB30W-0600-42-SIL | 120 & 277 | 300 to 600 | 25.2 | 28 - 42 | IP20 Rectangular Metal | Bluetooth | production | Check > |
