Constant Voltage LED Drivers
JVLM Series
96 W & 60 W, EFFICIENT, COMPACT, CLASS 2 Constant Voltage Drivers with Integrated Low Profile Junction Box
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 & 277 Vac | 96 W | 12, 24, 48 Vdc | 8, 4, 2 A | Up to 93% | < 20% | 90° C (measured at the hot spot) | > 0.9 | No dimming | 500 ms max |
Features:

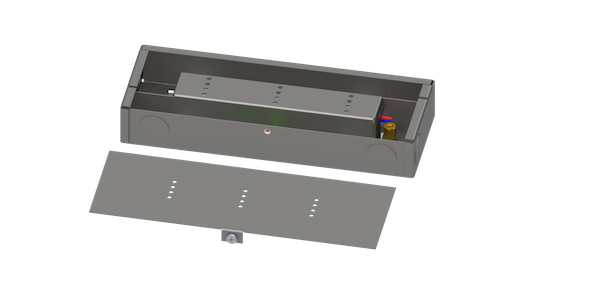

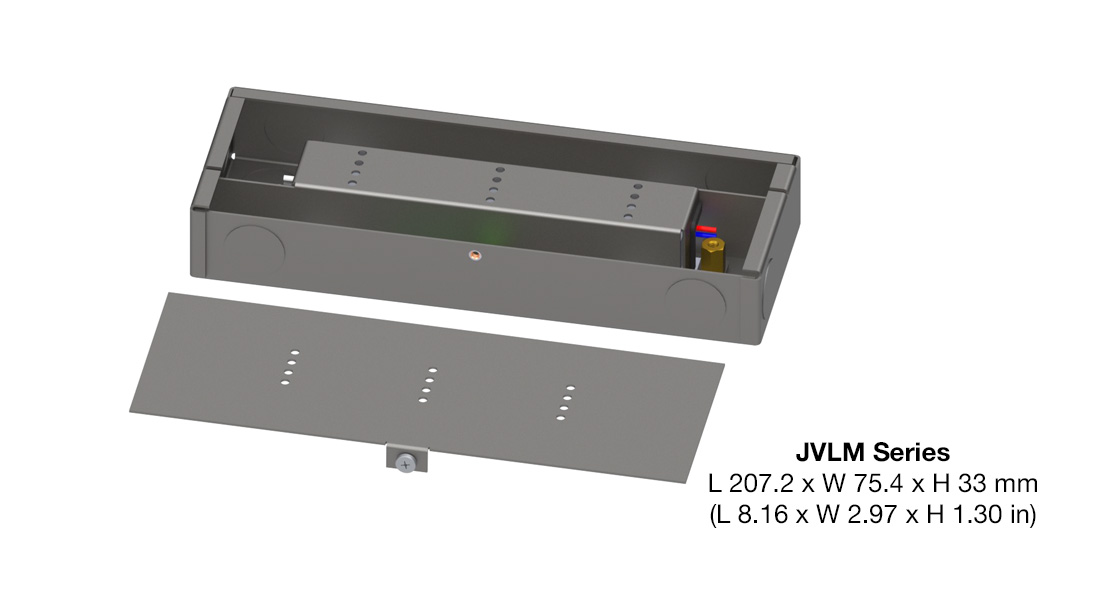

- Low profile, rugged steel enclosure designed for use with our Constant Voltage VLM series
-
Designed for contractor installation:
- UL listed
- Separation of low-voltage wiring and high-voltage wiring
- 4 mounting holes for surface mounting
- 4 knockout holes for low-voltage wiring and 4 knockout holes for high-voltage wiring enable maximum wiring flexibility
- Same electrical features as the VLM series
-
IP20-rated case
-
Patent pending
Applications:
- Cove Lights
- Linears
- Pendants
- Strip Lights
| ERP Part Number | Nominal Input Voltage (Vac) |
Max Output Current (mA) | Power (W) | Output Voltage (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| JVLM100W-24 | 120 & 277 | 4000 | 96.0 | 24 - 24 | IP20 Rectangular Metal | No dimming | sampling | Check > |
| JVLM100W-48 | 120 & 277 | 2000 | 96.0 | 48 - 48 | IP20 Rectangular Metal | No dimming | sampling | Check > |
| JVLM60W-12 | 120 & 277 | 5000 | 60.0 | 12 - 12 | IP20 Rectangular Metal | No dimming | sampling | Check > |
| JVLM60W-24 | 120 & 277 | 2500 | 60.0 | 24 - 24 | IP20 Rectangular Metal | No dimming | sampling | Check > |
| JVLM60W-48 | 120 & 277 | 1250 | 60.0 | 48 - 48 | IP20 Rectangular Metal | No dimming | sampling | Check > |
Notes:
- For additional options of output current and output voltage, contact your sales representative or contact us via email.
