Constant Current LED Drivers

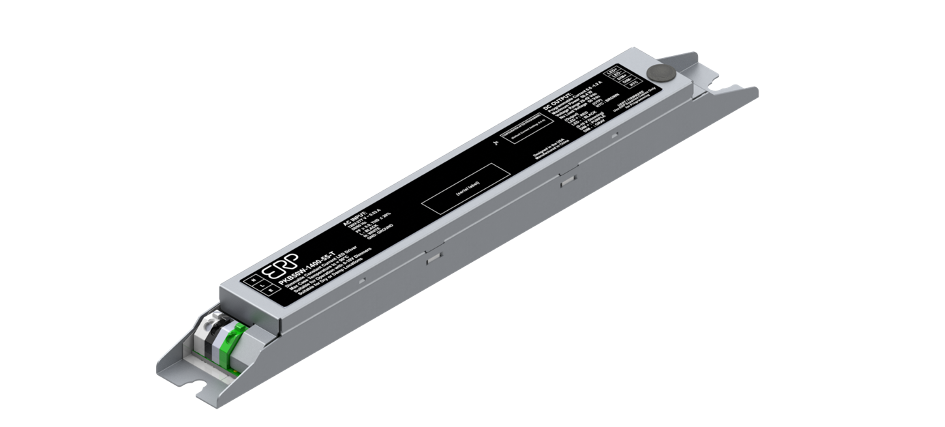

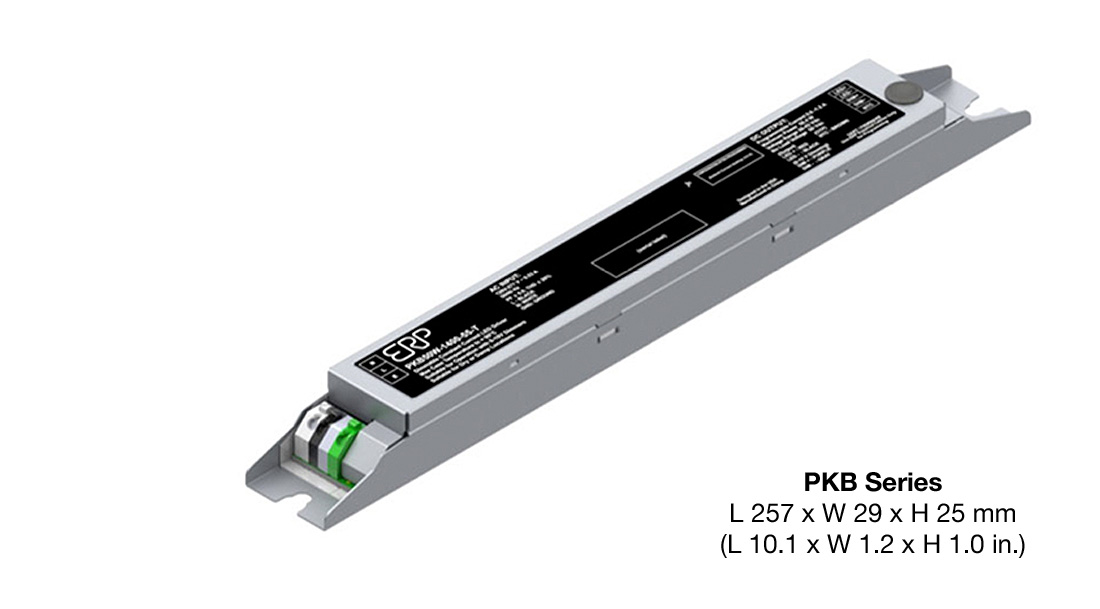

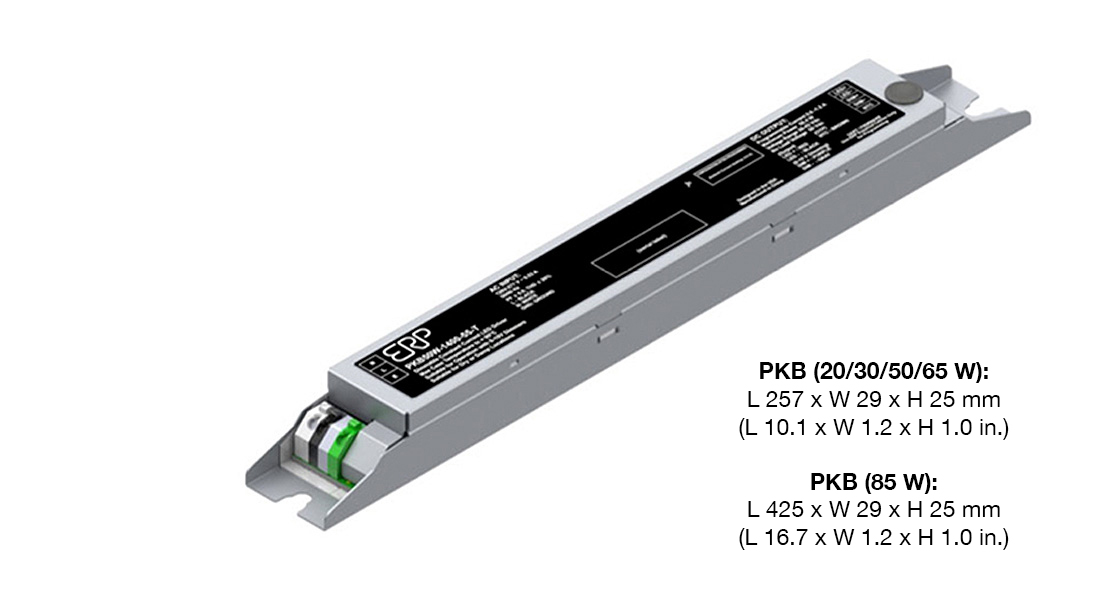

PKB Series
Programmable Constant Current Class 2 LED Driver with 0–10 V Dimming
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120–277 Vac | 85 W | 10–55 Vdc | 100–2300 mA Constant Current | up to 90% | < 20% | 90 ℃ (measured at the hot spot) | > 0.9 | Programmable 0–10 V | 1–100% (% of Iout) | 300 ms typical |
Features:
- UL Class P
- Class 2 output
- Lifetime: 5 years @ Tc ≤ 75 ºC
- 90 ºC maximum case hot spot temperature
- Surge protection:
- IEC61000-4-5: 2 kV line to line / 2 kV line to earth
- 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
Programming:
- Audio jack programming
- Current: See data sheet for current range
- 0–10 V dimming profiles: Linear, Non-linear, Logarithmic
- Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Applications:
- Architectural
- Commercial lighting
- Indoor lighting
- Residential lighting
| ERP Part Number | Nominal Input Voltage (Vac) |
Output Current (mA) | Power (W) | Voltage Range (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| PKB85W-2300-55-TNZ | 120 - 277 | 700 - 2300 | 85 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKB85W-2300-55-TN | 120 - 277 | 700 - 2300 | 85 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKB65W-1800-55-TN | 120 - 277 | 600 - 1800 | 65 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKB50W-1400-55-TN | 120 - 277 | 500 - 1400 | 50 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKB30W-1050-55-TN | 120 - 277 | 275 - 1050 | 30 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKB20W-0700-55-TN | 120 - 277 | 100 - 700 | 20 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
