Constant Current LED Drivers

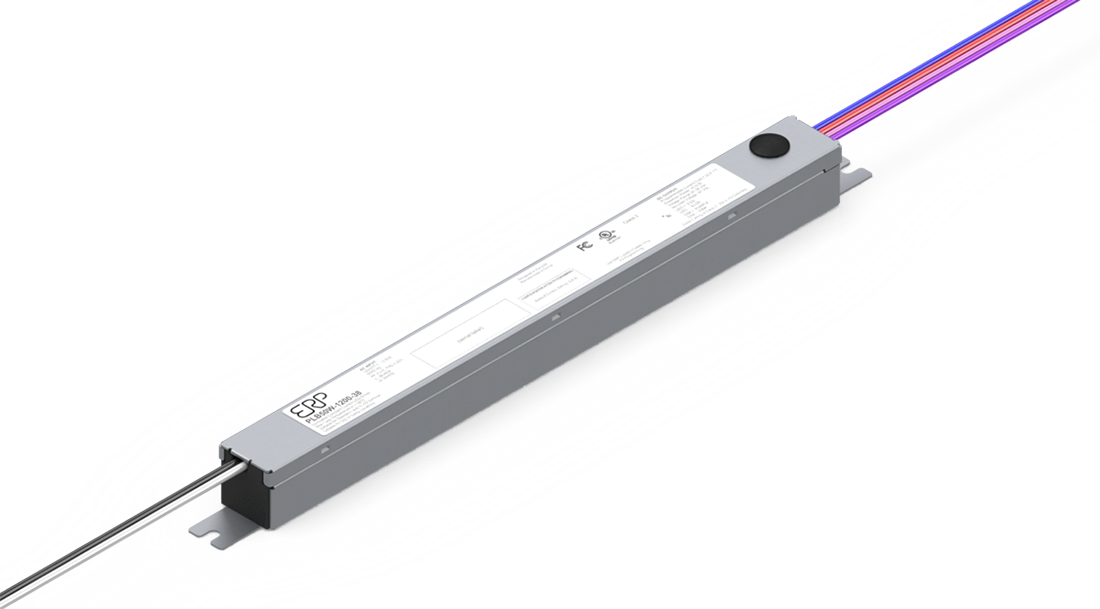

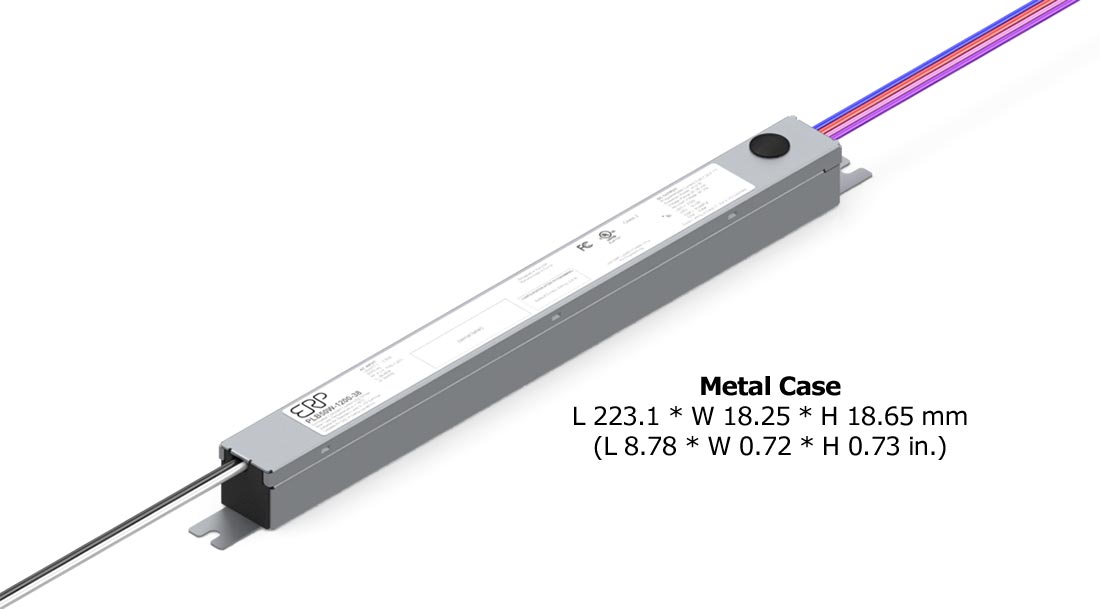

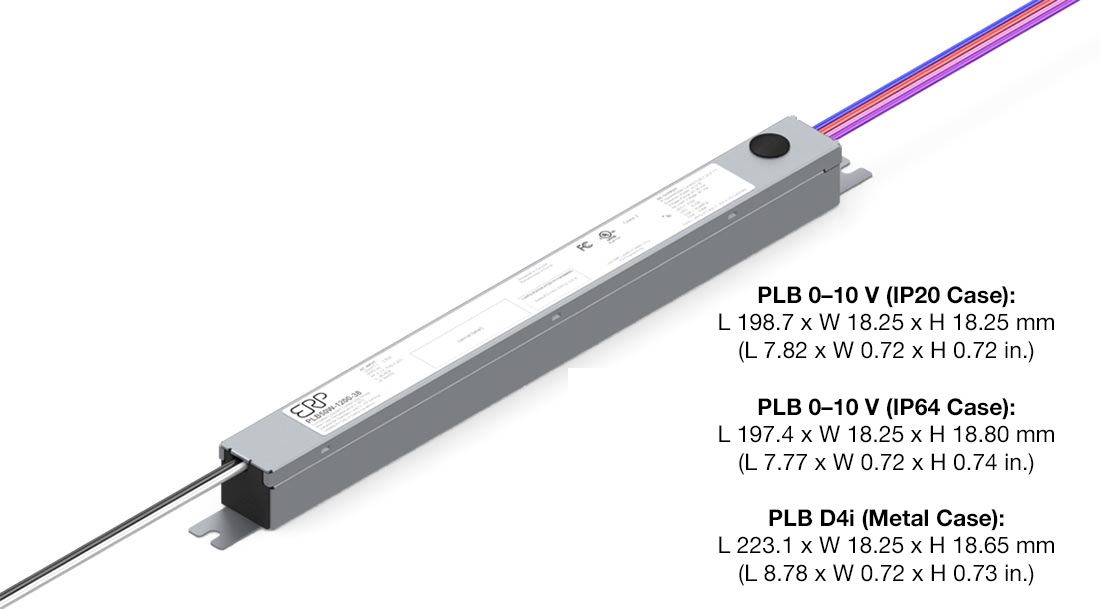

PLB Series

Low Profile Programmable Constant Current Class 2 LED Driver with 0-10 V Dimming
Features:
  • UL Class P
  • Class 2 power supply
  • Lifetime: 5 years @ Tc ≤ 75ºC
  • 90ºC maximum case hot spot temperature
  • IP20-rated case
  • Surge protection:
    • IEC61000-4-5: 2 kV line to line/2 kV line to earth
    • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
  • Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
PROGRAMMING
  • Audio jack programming
  • Current: 100% to 50% in each voltage range
  • 0-10V dimming profiles: Non-linear with dim-to-off, Non-linear without dim-to-off, Logarithmic
  • Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles

Applications:
  • Architectural Lighting
  • Commercial lighting
  • Indoor lighting
  • Residential light
UL CertifiedCA Title 24Energy StarFC Certified5 Year WarrentyClass 2
Technical Documentation:
> Datasheet
Email me the additional documentation:
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120 & 277 Vac 50 W 26 to 38 Vdc 100 to 1200 mA Constant Current up to 90% < 20% 90℃ (measured at the hot spot) >0.9 Programmable 0-10 V 1-100% (% of Iout) 300 ms typical
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)
Output Current (mA) Power (W) Voltage Range (Vdc) Case Type Dimming Status Availability
PLB15W-0300-38 120 & 277 300 11.4 26 - 38 IP20 Rectangular Metal Programmable 0-10 V production Check >
PLB15W-0300-38-FN 120 & 277 300 11.4 26 - 38 IP20 Rectangular Metal Programmable 0-10 V production Check >
PLB30W-0600-38 120 & 277 600 22.8 26 - 38 IP20 Rectangular Metal Programmable 0-10 V production Check >
PLB30W-0600-38-FN 120 & 277 600 22.8 26 - 38 IP20 Rectangular Metal Programmable 0-10 V production Check >
PLB50W-1200-38 120 & 277 1200 45.6 26 - 38 IP20 Rectangular Metal Programmable 0-10 V production Check >
PLB50W-1200-38-FN 120 & 277 1200 45.6 26 - 38 IP20 Rectangular Metal Programmable 0-10 V production Check >
