Constant Current LED Drivers

PLH Series

20–65 W High Density Programmable Constant Current Class 2 LED Driver with 0–10 V Dimming, and with Optional Auxiliary Output

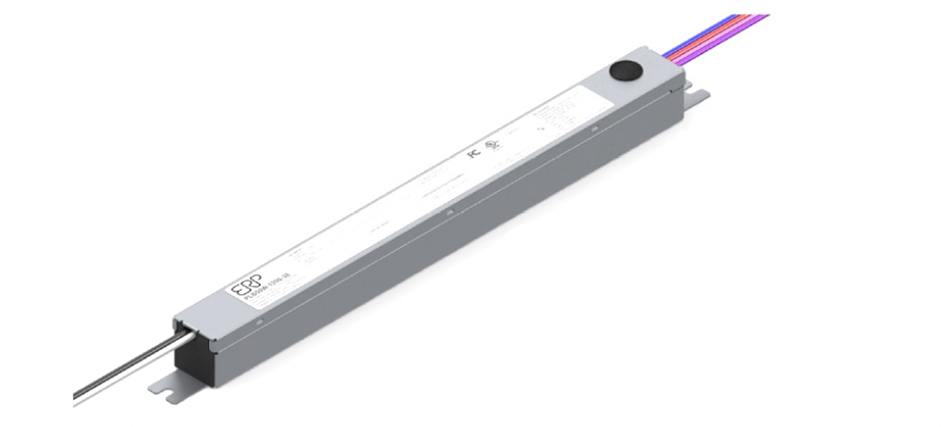

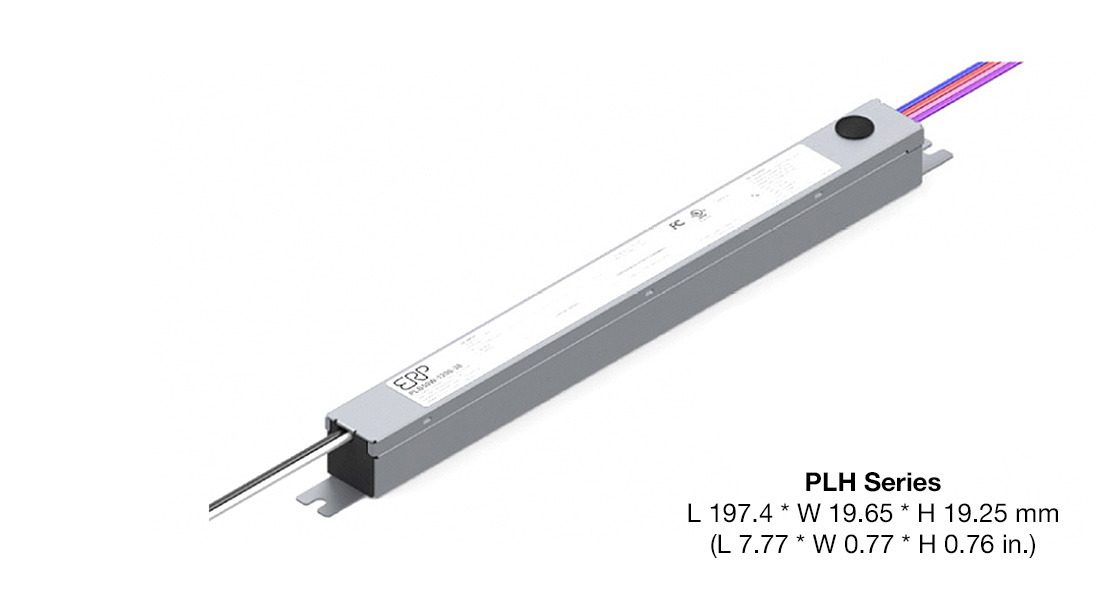

PLH Series 3d render with dimensions
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120–277 Vac 65 W 10–55 Vdc 100–1800 mA up to 92% typical < 20% @ max load 90 °C (measured at the hot spot) > 0.9 Programmable 0–10 V (with Dim-to-Off) 1–100% 300 ms typical
Features:
  • Up to 92% efficient
  • Lifetime: 50,000 hours @ Tc ≤ 85 ℃
  • Extended Lifetime: 100,000 hours at Tc ≤ 75 ℃
  • Current tolerance up to ±2% typical
  • Meets IEEE 1789-2015 “no impact” recommended practices for flicker
  • Synchronized start-up: 100 ms
  • Programmable dim-to-off for compliance with ANSI C137.1
  • Optional programmable auxiliary output
  • 0.5 W max standby power
  • UL8750 Class P, Class 2 power supply
  • 90 ℃ maximum case hot spot temperature
  • Surge protection:
    • IEC61000-4-5: 3 kV line to line / 3 kV line to earth
    • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
  • Complies with ENERGY STAR®, DLC (DesignLight Consortium®), and CA Title 24 technical requirements


Programming:

  • Audio jack programming
  • Current: See data sheet for current range
  • 0–10 V dimming profiles: Linear, Non-linear, Logarithmic
  • Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Applications:
  • Architectural Lighting
  • Commercial lighting
  • Indoor lighting
  • Office lighting
UL ListedFC CertifiedEnergy StarCA Title 24RoHS Compliant5 Year Warranty
Technical Documentation:
> Datasheet
Email me the additional documentation:
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)		 Output Current (mA) Power (W) Voltage Range (Vdc) Case Type Dimming Status Availability
PLH-A65W-18-55-SXZ 120 - 277 600 - 1800 65 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A65W-18-55-SZ 120 - 277 600 - 1800 65 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A50W-14-55-SXZ 120 - 277 500 - 1400 50 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A50W-14-55-SZ 120 - 277 500 - 1400 50 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A30W-10-55-SXZ 120 - 277 275 - 1050 30 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A30W-10-55-SZ 120 - 277 275 - 1050 30 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A20W-07-55-SXZ 120 - 277 100 - 700 20 10-55 IP20 Aluminum 0-10 V production Check >
PLH-A20W-07-55-SZ 120 - 277 100 - 700 20 10-55 IP20 Aluminum 0-10 V production Check >
Notes:
(1) The ERP LED Driver Configuration Tool (ERP GUI) allows programming of the output current to values below the minimum limits specified in the table above. However, when the programmed output current is set below these minimum thresholds, the LED driver’s Total Harmonic Distortion (THD) and Power Factor (PF) may not meet the values defined in the INPUT SPECIFICATION section of this datasheet. For proper operation, please also refer to the OPERATING ENVELOPE for each part number, which defines the permissible ranges of output current and output voltage where THD and PF compliance is maintained. (2) The forward voltage (Vf) of the LED load should not exceed Vout Max. of the driver under worst case field operating conditions which are the Vf max. of the LED load under lowest temperature and highest forward current conditions. As a general design guideline, the nominal LED load Vf measured at the operating current and at room temperature should be ≤ Vout Nom. of the driver.
