Constant Current LED Drivers

PLS Series

20–95 W Programmable Constant Current Class 2 LED Driver with 0–10 V Dimming, Dim-to-Off and Optional Auxiliary Output

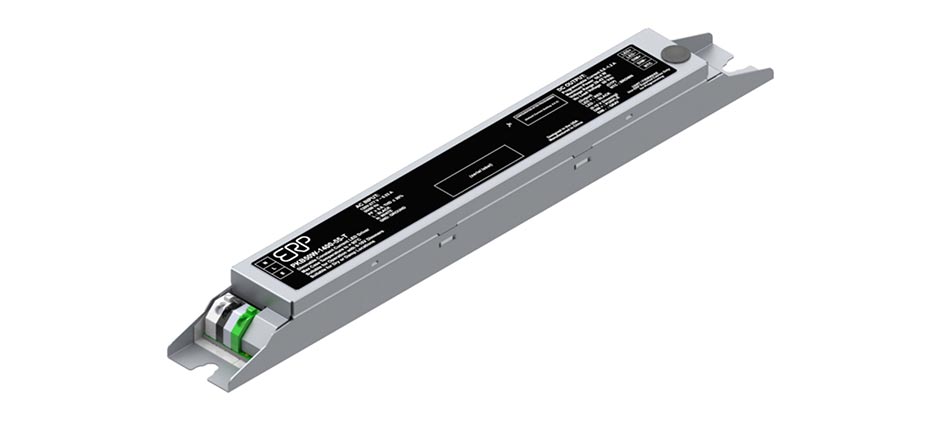

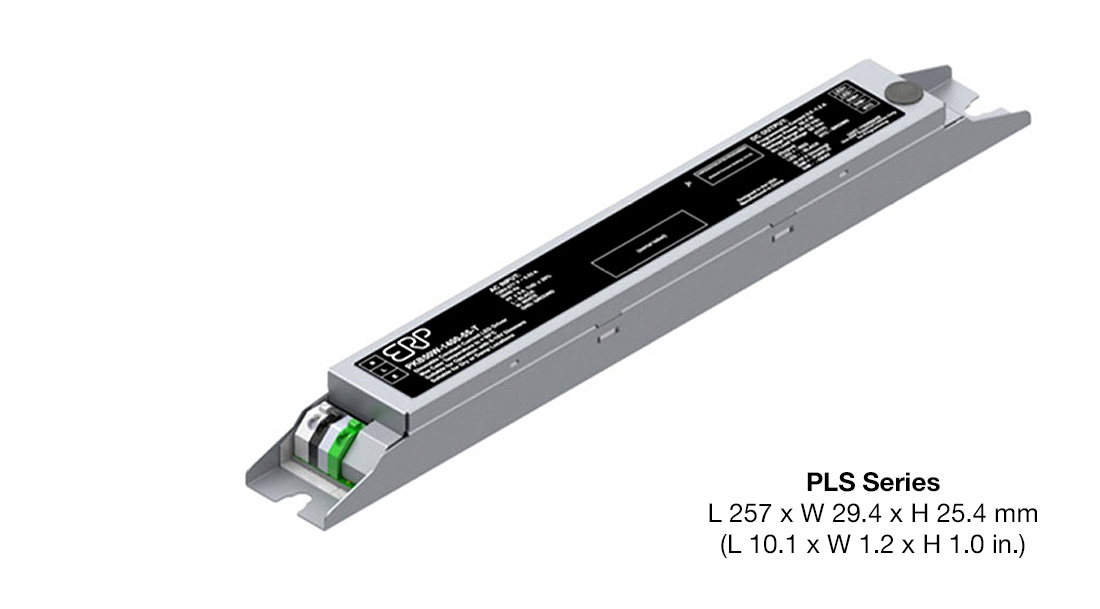

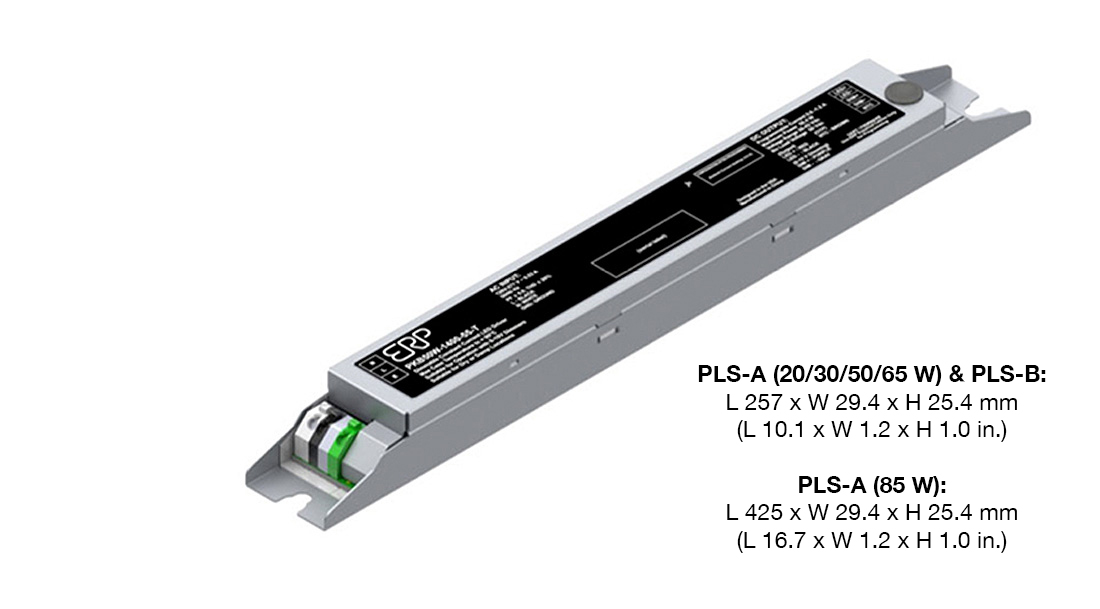

PLS Series 3d render with dimensions
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120–277 Vac 95 W 10–55 Vdc 100–2300 mA (PLS-A); 700–2750 mA (PLS-B) up to 87% (PLS-A); up to 92% (PLS-B) < 20% @ max load 90 °C (measured at the hot spot) > 0.9 Programmable 0–10 V (with Dim-to-Off) 1–100% 300 ms typical
Features:
  • PLS-A Efficiency: Up to 87%
  • PLS-B Efficiency: Up to 92% typical
  • Current tolerance up to ±2% typical
  • Meets IEEE 1789-2015 “no impact” recommended practices for flicker
  • Programmable 0–10 V from 100% to “Dim-to-Off” complies with ANSI C137.1
  • Optional programmable auxiliary (-TXZ) output
  • Surge protection:
    • IEC61000-4-5: 6 kV line to line / 6 kV line to earth
    • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
  • UL8750 Class P, Class 2 power supply
  • PLS-A Lifetime: 50,000 hours @ Tc ≤ 75 ℃
  • PLS-B Lifetime: 50,000 hours @ Tc ≤ 85 ℃
  • PLS-B Extended Lifetime: 100,000 hours @ Tc ≤ 75 ℃
  • 90 ℃ maximum case hot spot temperature
  • Complies with ENERGY STAR®, DLC (DesignLight Consortium®), and CA Title 24 technical requirements


Programming:

  • Audio jack and cradle programming
  • Current: See data sheets for current range
  • Fully programmable and selectable 0–10 V dimming profiles: Non-linear with dim-to-off, Logarithmic, Non-Linear without dim-to-off
  • Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Applications:
  • Architectural Lighting
  • Commercial lighting
  • Indoor lighting
  • Office lighting
UL CertifiedFC CertifiedEnergy StarCA Title 245 Year WarrantyRoHS Compliant
Technical Documentation:
> Datasheet
Email me the additional documentation:
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)		 Output Current (mA) Power (W) Voltage Range (Vdc) Case Type Dimming Status Availability
PLS-A20W-07-55-TZ 120 - 277 100 - 700 20 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A20W-07-55-TXZ 120 - 277 100 - 700 20 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A30W-10-55-TZ 120 - 277 275 - 1050 30 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A30W-10-55-TXZ 120 - 277 275 - 1050 30 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A50W-14-55-TZ 120 - 277 400 - 1400 50 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A50W-14-55-TXZ 120 - 277 400 - 1400 50 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A65W-18-55-TZ 120 - 277 600 - 1800 65 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A65W-18-55-TXZ 120 - 277 600 - 1800 65 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-A85W-23-55-TXZ 120 - 277 700 - 2300 85 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-B85W-23-55-TZ 120 - 277 700 - 2300 85 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-B85W-23-55-TXZ 120 - 277 700 - 2300 85 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-B95W-27-55-TZ 120 - 277 900 - 2750 95 10-55 IP20 Aluminum Programmable 0-10 V production Check >
PLS-B95W-27-55-TXZ 120 - 277 900 - 2750 95 10-55 IP20 Aluminum Programmable 0-10 V production Check >
