Constant Current LED Drivers

PRH Series

10–50 W High Density Constant Current Programmable Class 2 LED Driver with 0–10 V and Tri-Mode Dimming™ (TRIAC, ELV & 0–10 V) and with Optional Auxiliary Output

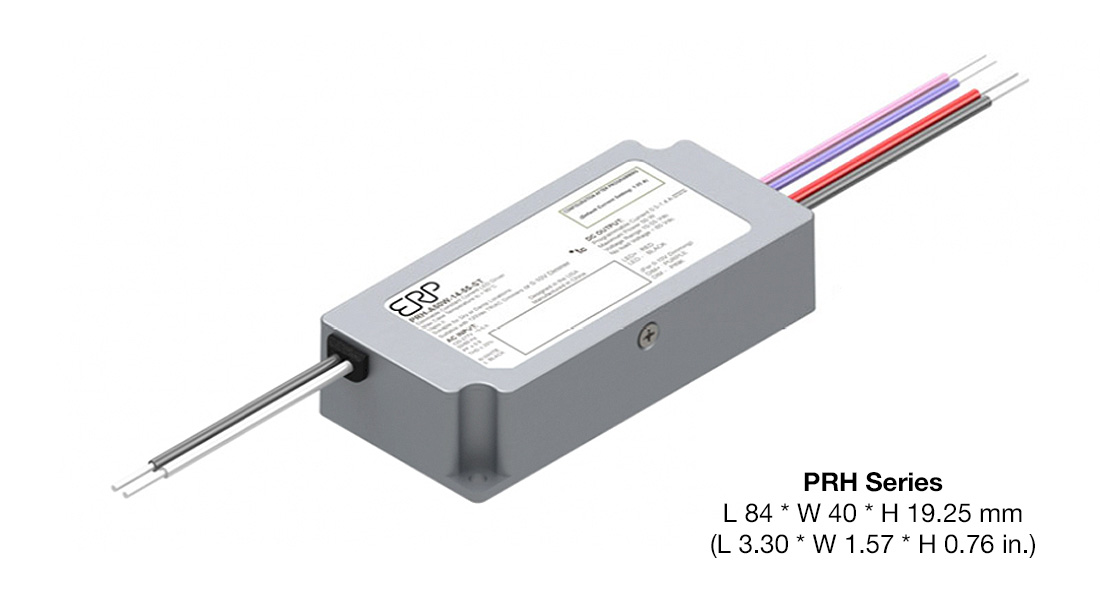

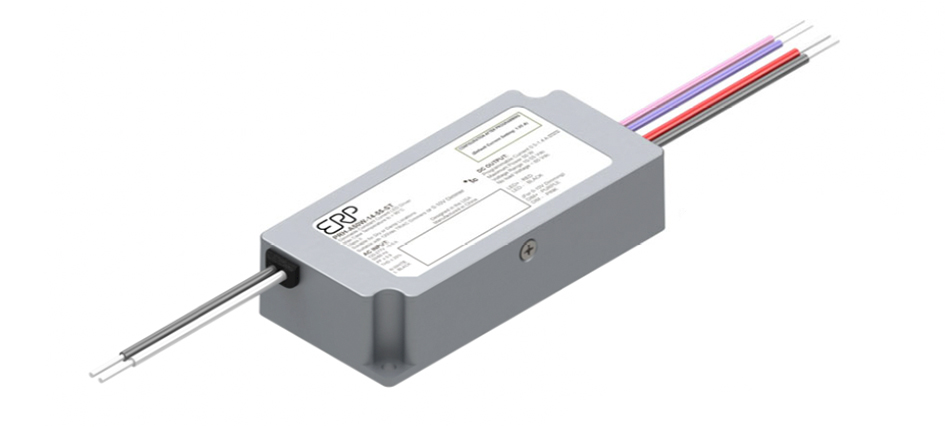

PRH series 3d render
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120–277 Vac 50 W 10–55 Vdc 100–1400 mA up to 92% typical < 20% @ max load 90 °C (measured at the hot spot) > 0.9 Programmable Forward-Phase (120 Vac only), Reverse-Phase (120 Vac only) and 0–10 V (120 & 277 Vac) with Dim-to-Off 1–100% 300 ms typical
Features:
  • Same footprint as the popular ESS series, but with a lower height
  • Meets IEEE 1789-2015 “no impact” recommended practices for flicker
  • Programmable dim-to-off for compliance with ANSI C137.1
  • Lifetime: 50,000 hours @ Tc = 90 ℃
  • 90 ℃ maximum case hot spot temperature
  • UL8750 Class P, Class 2 power supply
  • Synchronized start-up: 100 ms
  • IP20-rated case
  • Surge protection:
    • IEC61000-4-5: 3 kV line to line / 3 kV line to earth
    • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
  • Complies with ENERGY STAR®, DLC (DesignLight Consortium®), and CA Title 24 technical requirements


Programming:

  • Audio jack programming
  • 0–10 V dimming profiles: Linear, Non-linear, Logarithmic
  • Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Applications:
  • Architectural Lighting
  • Commercial lighting
  • Indoor lighting
  • Residential lighting
UL ListedFC CertifiedEnergy StarCA Title 24RoHS Compliant5 Year Warranty
Technical Documentation:
> Datasheet
Get the CAD file
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)		 Output Current (mA) Power (W) Voltage Range (Vdc) Case Type Dimming Status Availability
PRH-B50W-14-55-SXT 120 - 277 500 - 1400 50 10-55 IP20 Rectangular Metal For/Rev Phase & 0-10V production Check >
PRH-B50W-14-55-ST 120 - 277 500 - 1400 50 10-55 IP20 Rectangular Metal For/Rev Phase & 0-10V production Check >
PRH-A50W-14-55-SXZ 120 - 277 500 - 1400 50 10-55 IP20 Rectangular Metal 0-10 V production Check >
PRH-A50W-14-55-SZ 120 - 277 500 - 1400 50 10-55 IP20 Rectangular Metal 0-10 V production Check >
PRH-B30W-10-55-SXT 120 - 277 275 - 1050 30 10-55 IP20 Rectangular Metal For/Rev Phase & 0-10V production Check >
PRH-B30W-10-55-ST 120 - 277 275 - 1050 30 10-55 IP20 Rectangular Metal For/Rev Phase & 0-10V production Check >
PRH-A30W-10-55-SXZ 120 - 277 275 - 1050 30 10-55 IP20 Rectangular Metal 0-10 V production Check >
PRH-A30W-10-55-SZ 120 - 277 275 - 1050 30 10-55 IP20 Rectangular Metal 0-10 V production Check >
PRH-B20W-07-55-SXT 120 - 277 100 - 700 20 10-55 IP20 Rectangular Metal For/Rev Phase & 0-10V production Check >
PRH-B20W-07-55-ST 120 - 277 100 - 700 20 10-55 IP20 Rectangular Metal For/Rev Phase & 0-10V production Check >
PRH-A20W-07-55-SXZ 120 - 277 100 - 700 20 10-55 IP20 Rectangular Metal 0-10 V production Check >
PRH-A20W-07-55-SZ 120 - 277 100 - 700 20 10-55 IP20 Rectangular Metal 0-10 V production Check >
PRH-A05W-02-55-SXZ 120 - 277 100 - 210 10 10-55 IP20 Rectangular Metal 0-10 V production Check >
Notes:
(1) The ERP LED Driver Configuration Tool (ERP GUI) allows programming of the output current to values below the minimum limits specified in the table above. However, when the programmed output current is set below these minimum thresholds, the LED driver’s Total Harmonic Distortion (THD) and Power Factor (PF) may not meet the values defined in the INPUT SPECIFICATION section of this datasheet. For proper operation, please also refer to the OPERATING ENVELOPE for each part number, which defines the permissible ranges of output current and output voltage where THD and PF compliance is maintained.   (2) The forward voltage (Vf) of the LED load should not exceed Vout Max. of the driver under worst case field operating conditions which are the Vf max. of the LED load under lowest temperature and highest forward current conditions. As a general design guideline, the nominal LED load Vf measured at the operating current and at room temperature should be ≤ Vout Nom. of the driver.
