Constant Current LED Drivers
PTB Series
Programmable CC Class 2 / Class II LED Driver with High Performance Tri-Mode Dimming™ (TRIAC, ELV & 0-10 V)
Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
---|---|---|---|---|---|---|---|---|---|---|
120 & 277 Vac | 30 W | 28 to 42 Vdc | 210 to 700 mA Constant Current | up to 87% | < 20% | 90℃ (measured at the hot spot) | >0.9 | Programmable Forward-Phase, Reverse-Phase, & 0-10 V | 1-100% (% of Iout) | 300 ms typical |

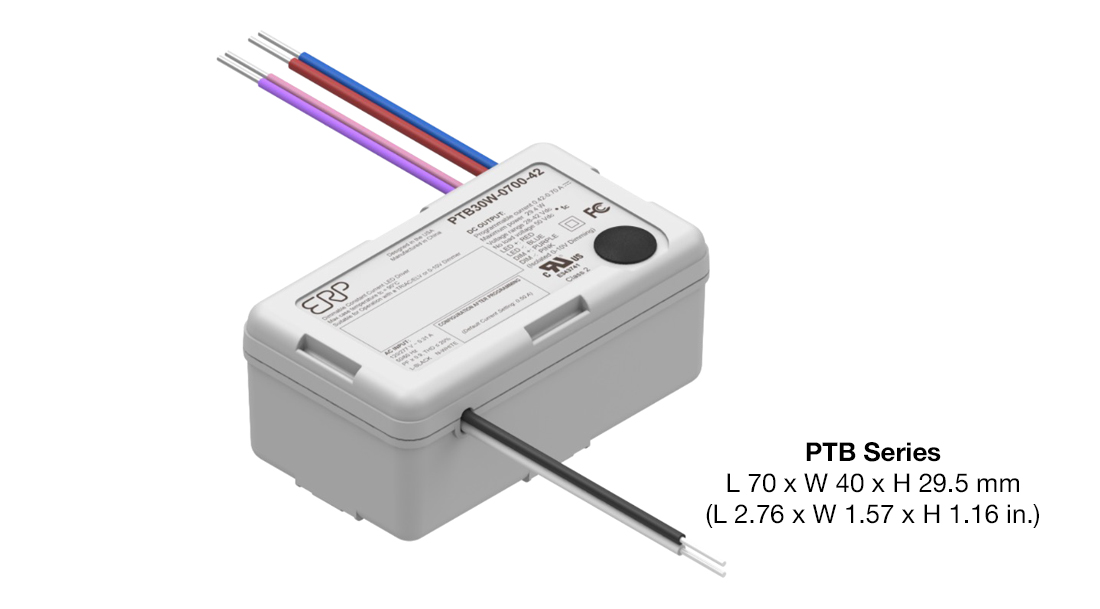

![PTB Series Casing](https://www.erp-power.com/wp-content/uploads/2020/05/ptb-series-casing.png)
Features:
- Class 2 power supply
- Lifetime: 5 years @ Tc 75ºC
- 90ºC maximum case hot spot temperature
- IP20-rated case
- Surge protection:
- IEC61000-4-5: 2 kV line to line/2 kV line to earth
- 5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
- Audio jack programming
- Current: 100% to 50% in each voltage range
- 0-10V dimming profiles: Linear, Non-linear, Logarithmic
- Programmable conduction angles with turn-on & turn-off for TRIAC & ELV
- Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Applications:
- Architectural
- Commercial lighting
- Indoor lighting
- Residential light
![Cruus Logo](https://www.erp-power.com/wp-content/uploads/2018/06/cruus-logo.png)
![CA Title 24](https://www.erp-power.com/wp-content/uploads/2017/05/CA-Title-24.jpg)
![Energy Star](https://www.erp-power.com/wp-content/uploads/2017/09/Energy-Star-2.png)
![FC Certified](https://www.erp-power.com/wp-content/uploads/2017/09/FC-Certified-2.png)
![5 Year Warrenty](https://www.erp-power.com/wp-content/uploads/2017/09/5-Year-Warrenty-1.png)
![Class 2](https://www.erp-power.com/wp-content/uploads/2019/05/class2-sm.png)
![Squares](https://www.erp-power.com/wp-content/uploads/2019/05/squares-sm.png)
![Loading Products](https://www.erp-power.com/wp-content/themes/erp/images/product_loader.gif)
ERP Part Number | Nominal Input Voltage (Vac) |
Output Current (mA) | Power (W) | Voltage Range (Vdc) | Case Type | Dimming | Status | Availability |
---|---|---|---|---|---|---|---|---|
PTB15W-0350-42-FN | 120 & 277 | 210 - 350 | 14.7 | 28 - 42 | IP20 Rectangular Plastic | For/Rev Phase & 0-10V, 1-100% | production | Check > |
PTB30W-0500-42-FN | 120 & 277 | 300 - 500 | 21.0 | 28 - 42 | IP20 Rectangular Plastic | For/Rev Phase & 0-10V, 1-100% | production | Check > |
PTB30W-0700-42-FN | 120 & 277 | 420 - 700 | 29.4 | 28 - 42 | IP20 Rectangular Plastic | For/Rev Phase & 0-10V, 1-100% | production | Check > |
PTB10W-0250-42-ZN | 120 & 277 | 150 - 250 | 10.6 | 28 - 42 | IP20 Rectangular Plastic | For/Rev Phase & 0-10V, 1-100% | production | Check > |
PTB20W-0420-42-ZN | 120 & 277 | 250 - 420 | 17.0 | 28 - 42 | IP20 Rectangular Plastic | For/Rev Phase & 0-10V, 1-100% | production | Check > |
PTB30W-0700-42-ZN | 120 & 277 | 420 - 700 | 29.4 | 28 - 42 | IP20 Rectangular Plastic | For/Rev Phase & 0-10V, 1-100% | production | Check > |
Notes:
There are currently no notes available at this time.
