Constant Voltage LED Drivers

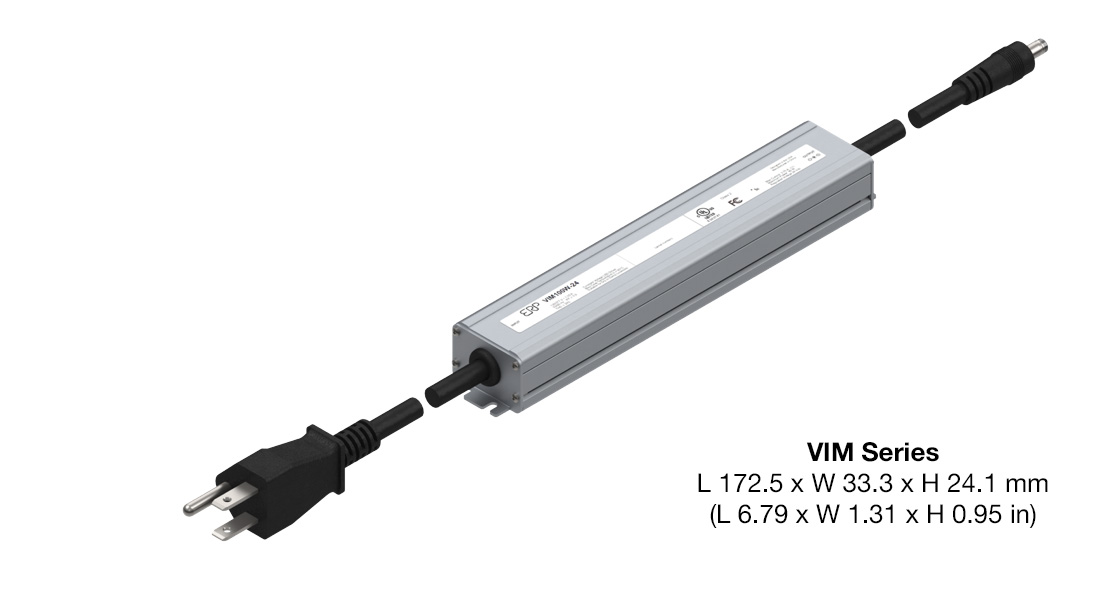

VIM Series
90 & 60 W, Efficient, CV Class 2 LED Drivers
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 & 277 Vac | 90 W | 12, 24 Vdc | 5, 3.75 A | up to 90% typical | < 20% | 90°C (measured at the hot spot) | > 0.9 |
Features:
- Class 2 power supply
- IP20-rated case with silicone-based potting
- Lifetime: 50,000 hours minimum
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
Applications:
- Signage
- Strip Lights
| ERP Part Number | Nominal Input Voltage (Vac) |
Max Output Current (mA) | Power (W) | Output Voltage (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| VIM060W-12 | 120 & 277 | 5000 | 60.0 | 0 - 12 | IP20 Rectangular Metal | No dimming | production | Check > |
| VIM100W-24 | 120 & 277 | 3750 | 90.0 | 0 - 24 | IP20 Rectangular Metal | No dimming | production | Check > |
Notes:
There are currently no notes available at this time.
