Constant Voltage LED Drivers

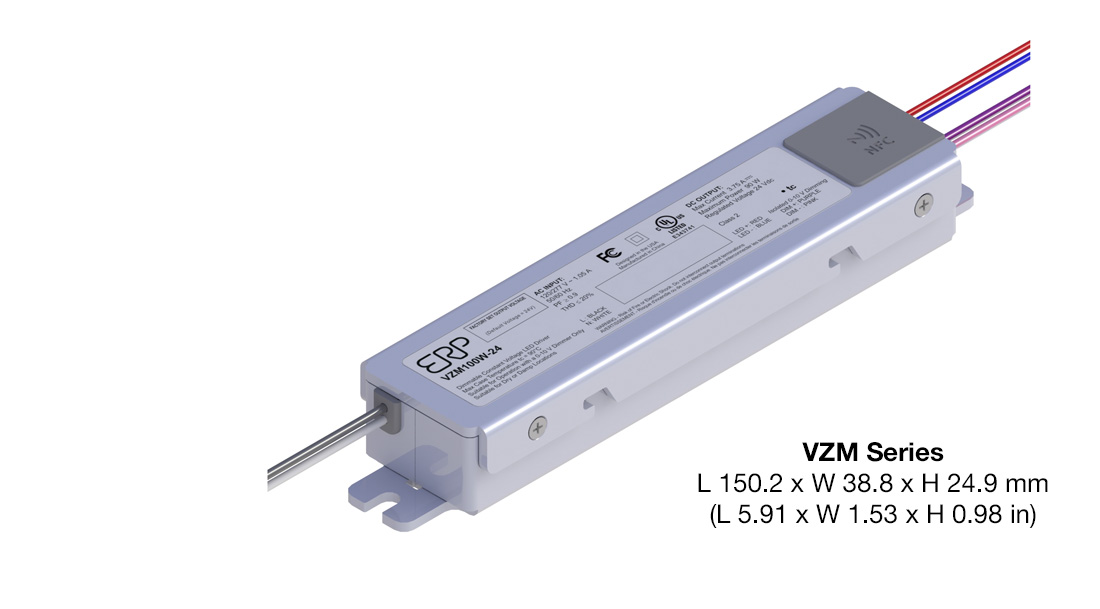

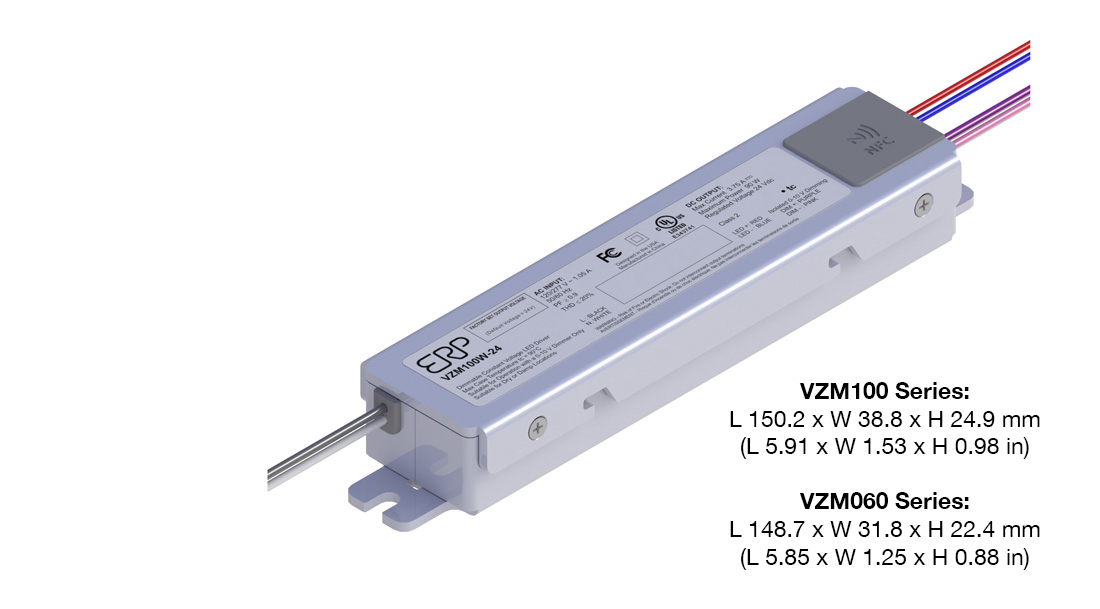

VZM Series
Efficient, Compact Constant Voltage Class 2 LED Drivers with 0–10 V Dimming
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 & 277 Vac | 90 W | 24, 48 Vdc | 3.75, 1.9 A | up to 90% typical | < 20% | 90 °C (measured at the hot spot) | > 0.9 | 0–10 V | 1–100% | 300 ms typical |
Features:
- Class 2 power supply
- UL Class P
- Ripple ≤ 5% @ 20% & 100% load
- Constant voltage mode with over-current protection
- IP20-rated case with silicone-based potting
- 90 ℃ maximum case hot spot temperature
- Lifetime: 5 years min at 85 ℃ case temperature
- EMI: Compliant with FCC CFR Title 47 Part 15 Class B at 120 Vac & Class A at 277 Vac
- Surge protection:
- IEC61000-4-5: 2 kV line to line / 2 kV line to earth
- 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
NFC Programming:
- Programmable output voltage for optimal dimming range
- Fully programmable 0–10 V dimming profile with dim-to-off
Applications:
- Cove Lights
- Linears
- Pendants
- Strip Lights
| ERP Part Number | Nominal Input Voltage (Vac) |
Max Output Current (mA) | Power (W) | Output Voltage (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| VZM100W-48 | 120 & 277 | 3750 | 90.0 | 48 | IP20 Rectangular Metal | 0-10V (1-100%) | production | Check > |
| VZM100W-24 | 120 & 277 | 3750 | 90.0 | 24 | IP20 Rectangular Metal | 0-10V (1-100%) | production | Check > |
| VZM060W-48 | 120 & 277 | 1250 | 60.0 | 48 | IP20 Rectangular Metal | 0-10V (1-100%) | production | Check > |
| VZM060W-24 | 120 & 277 | 2500 | 60.0 | 24 | IP20 Rectangular Metal | 0-10V (1-100%) | production | Check > |
Notes:
There are currently no notes available at this time.
