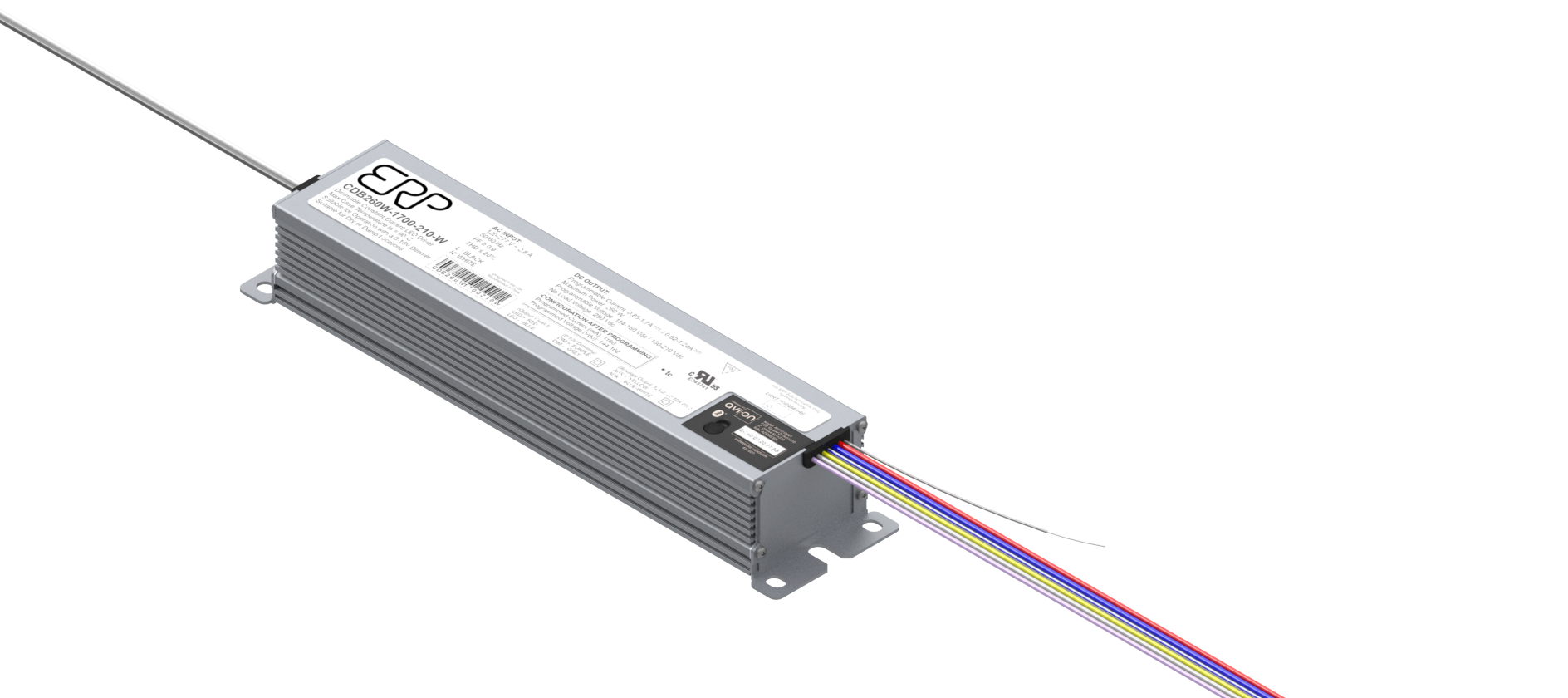

Constant Current LED Drivers
CDB Series
260 W, Programmable, 0-10 V Dimming & Integrated Bluetooth® Mesh
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120 & 277 Vac nominal | 260 W | 114 to 400 Vdc | 325 mA to 1700 mA CC | up to 93% typical | < 20% | 90° C (measured at the hot spot) | > 0.9 | 0-10V | 1-100% (% of Iout) | 500 ms Typical |
Features:
- Non-linear 0-10V dimming profile with dim-to-off
- Auxiliary output 12 V/100 mA
- IP66-rated case with silicone-based potting
- Outdoor Surge protection:
- IEC61000-4-5: 4 kV line to line/4 kV line to earth
- 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Conducted and radiated EMI: Compliant with FCC CFR Title 47 Part 15 Class A at 120 Vac & 277 Vac
- Lifetime: 50,000 hours @ Tc = 70°C
- 90°C maximum case hot spot temperature
- UL Class P
- Programming Features
- Dual output voltage range selection
- Serial port programming
- Current: 100% to 50% in each voltage range
- Data log read: SKU, S/N, lot code, hours of operation, FW rev., fault events: power failure, transients (short or surge), thermal
- Communication Features
- Bi-directional (dimming up and down and data log read)
- Bluetooth Mesh with wire whip antenna and external removable antenna
- Avi-on Bluetooth Mesh Solution
- Wireless lighting controls with simple set-up that anyone can use
- Pre-integrated Bluetooth Smart + CSRmesh module enables brands to create multi-way controls and switching without additional wiring; no central gateway required
- Utility grade, secure, reliable mobile app & software
- Dimming, grouping, many users, schedules, timers
- Virtually unlimited range with mesh
- Download for free, additional services available
Applications:
- Commercial lighting
- High Bay
- Horticulture
- Indoor lighting
- Industrial Lighting
- Outdoor LED Light
- Street Lights
| ERP Part Number | Nominal Input Voltage (Vac) |
Output Current (mA) | Power (W) | Voltage Range (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| CDB260W-1700-210-W | 120 & 277 | 620 - 1700 | 260 | 117 - 210 | IP66 Aluminum | 0-10V (1-100%) | production | Check > |
| CDB260W-1700-210-R | 120 & 277 | 620 - 1700 | 260 | 117 - 210 | IP66 Aluminum | 0-10V (1-100%) | production | Check > |
| CDB260W-1300-280-W | 120 & 277 | 465 - 1300 | 260 | 156 - 280 | IP66 Aluminum | 0-10V (1-100%) | production | Check > |
| CDB260W-1300-280-R | 120 & 277 | 465 - 1300 | 260 | 156 - 280 | IP66 Aluminum | 0-10V (1-100%) | production | Check > |
| CDB260W-0860-400-W | 120 & 277 | 325 - 860 | 260 | 234 - 400 | IP66 Aluminum | 0-10V (1-100%) | production | Check > |
| CDB260W-0860-400-R | 120 & 277 | 325 - 860 | 260 | 234 - 400 | IP66 Aluminum | 0-10V (1-100%) | production | Check > |
Notes:
- Programming via desktop/laptop computer running ERP Power software connected to the driver over a USB serial cable
- For additional options of output current and output voltage, contact your sales representative or send an email to:SaveEnergy@ERP-Power.com
