Constant Current LED Drivers

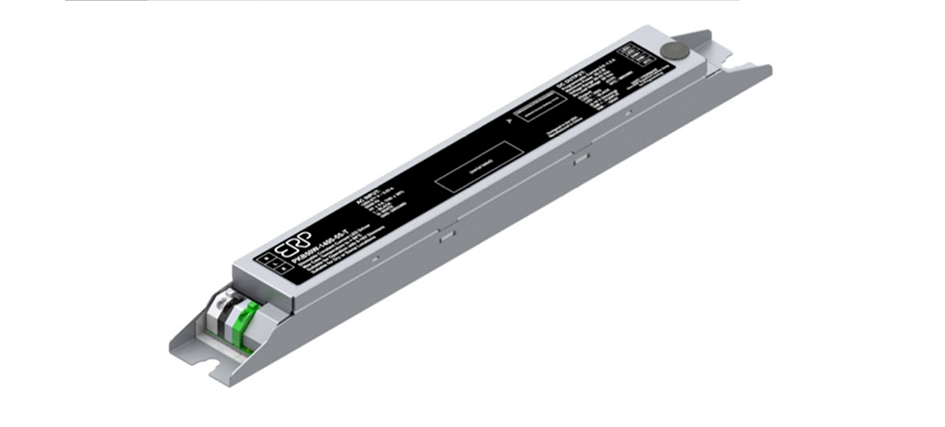

MLS Series

Multi-Channel Programmable Constant Current Class 2 LED Driver with 0-10 V Dimming & Auxiliary Output
Input Voltage Max Output Power Output Voltage Output Current Range Efficiency THD       Max Case Temp Power Factor Dimming Method Dimming Range Start Time
120 – 277 Vac 80 W 10 – 56 Vdc 50 – 470 mA up to 88%+ typical < 20% @ max load 90°C (measured at the hot spot) > 0.9 Programmable 0–10 V 1–100% 300 ms typical

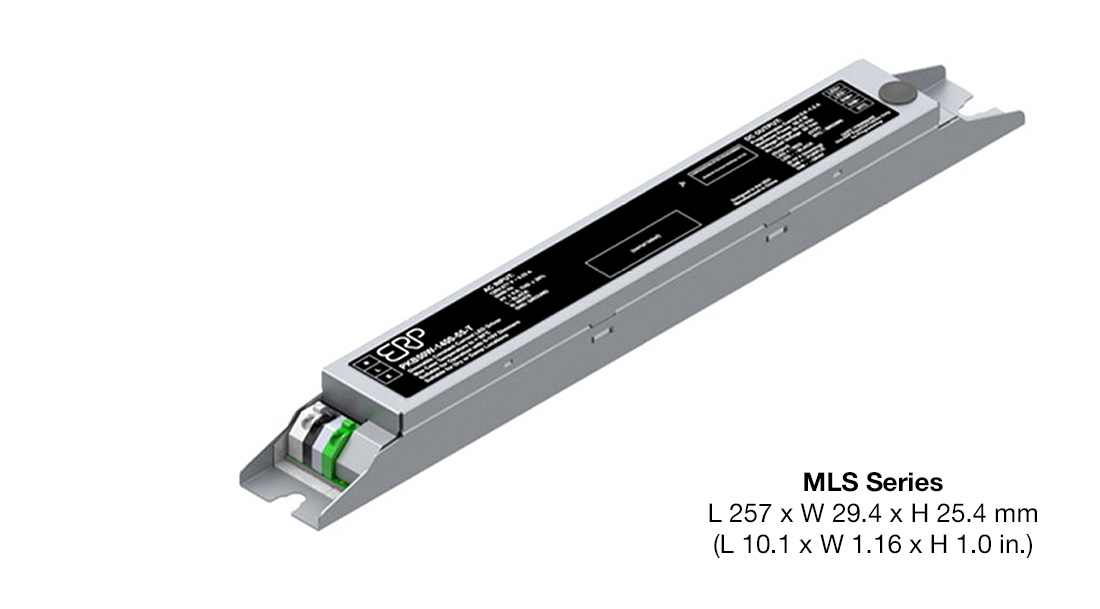

MLS Series
Features:
  • 3 fully configurable outputs
  • Optimized for use with TWT series tape light
  • 3 modes of operation: Tunable White, Warm Dim, and Static White
  • Tunable White: 1800–6500 K adjustable range
  • Warm Dim: Incandescent (1800–2850 K), Halogen (1800–3050 K)
  • Static White: 1800, 2000, 2200, 2500, 2700, 3000, 3500, 4000, 4500, 5000, 5700, 6500 K
  • UL Class P
  • Class 2 output
  • Synchronized start-up: 100 ms
  • Lifetime: 5 years @ Tc ≤ 75°C
  • 90°C maximum case hot spot temperature
  • Surge protection:
    • IEC61000-4-5: 2 kV line to line/2 kV line to earth
    • 2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
  • Complies with ENERGY STAR, DLC (DesignLight Consortium), and CA Title 24 technical requirements
  • Meets IEEE 1789-2015 "no impact" recommended practices for flicker
PROGRAMMING
  • Audio jack and cradle programming
  • Control Lumens per foot, CCT, mode of operation
  • 0–10 V dimming profiles: Linear, Non-linear, Logarithmic
  • Data log read: SKU, S/N, Iot code, hours of operation, FW rev., power cycles
Applications:
  • Architectural Lighting
  • Commercial lighting
  • Indoor lighting
  • Residential light
UL ListedFC CertifiedEnergy StarCA Title 245 Year WarrantyRoHS Compliant
Technical Documentation:
> Driver Datasheet > TWT Tape Light Datasheet > MLS Configuration Tool
Loading Products
ERP Part Number Nominal
Input Voltage (Vac)		 Output Current (mA) Power (W) Voltage Range (Vdc) Case Type Dimming Status Availability
MLS-A30W-03-56-TXZ 120 - 277 TBD 30 10 - 56 IP20 Aluminum Programmable 0-10 V production Check >
MLS-A50W-05-56-TXZ 120 - 277 TBD 50 10 - 56 IP20 Aluminum Programmable 0-10 V production Check >
MLS-A80W-08-56-TXZ 120 - 277 TBD 80 10 - 56 IP20 Aluminum Programmable 0-10 V production Check >
Notes:

There are currently no notes available at this time.
