Constant Current LED Drivers
PKM Series

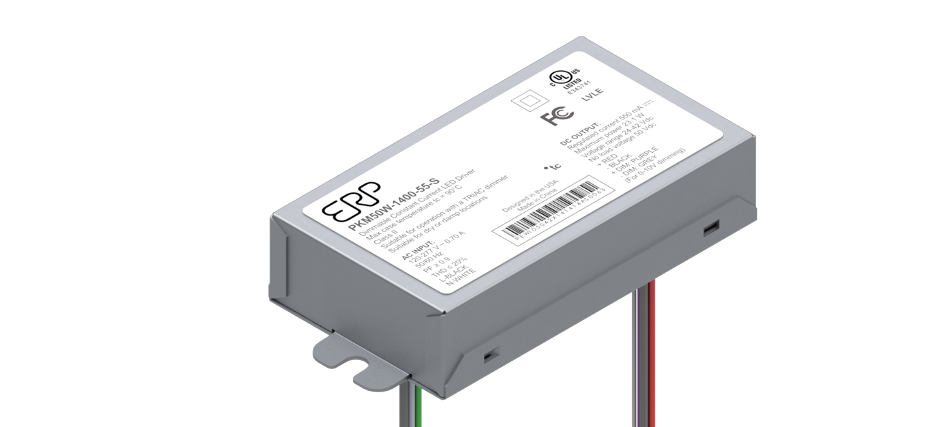

30–50 W Programmable Constant Current Class 2 LED Driver with 0–10 V Dimming
| Input Voltage | Max Output Power | Output Voltage | Output Current Range | Efficiency | THD | Max Case Temp | Power Factor | Dimming Method | Dimming Range | Start Time |
|---|---|---|---|---|---|---|---|---|---|---|
| 120–277 Vac | 50 W | 10–55 Vdc | 275–1400 mA | up to 90% | < 20% | 90 ℃ (measured at the hot spot) | > 0.9 | Programmable 0–10 V | 1–100% (% of Iout) | 300 ms typical |
Features:
- UL Class P
- Class 2 output
- External NTC (negative temperature coefficient) functionality
- Lifetime: 5 years @ Tc ≤ 75 ℃
- 90 ℃ maximum case hot spot temperature
- Surge protection:
- IEC61000-4-5: 2 kV line to line / 2 kV line to earth
- 5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
- Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
Programming:
- Audio jack programming
- NTC derating profile
- Current: see datasheet for current range
- 0–10 V dimming profiles: Linear, Non-linear, Logarithmic
- Data log read: SKU, S/N, lot code, hours of operation, FW rev., power cycles
Case Dimensions:

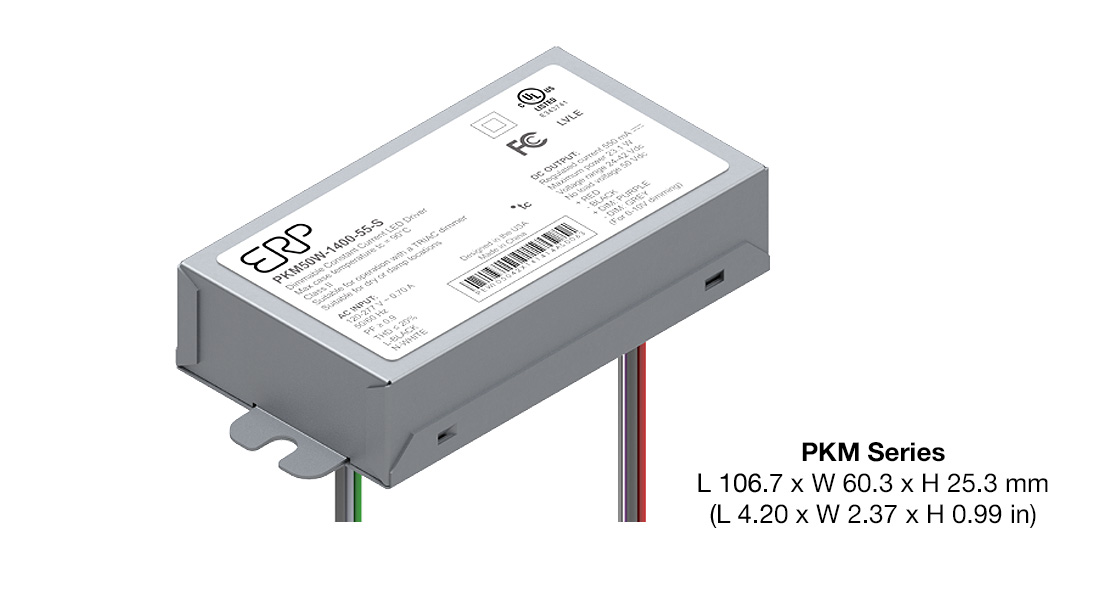

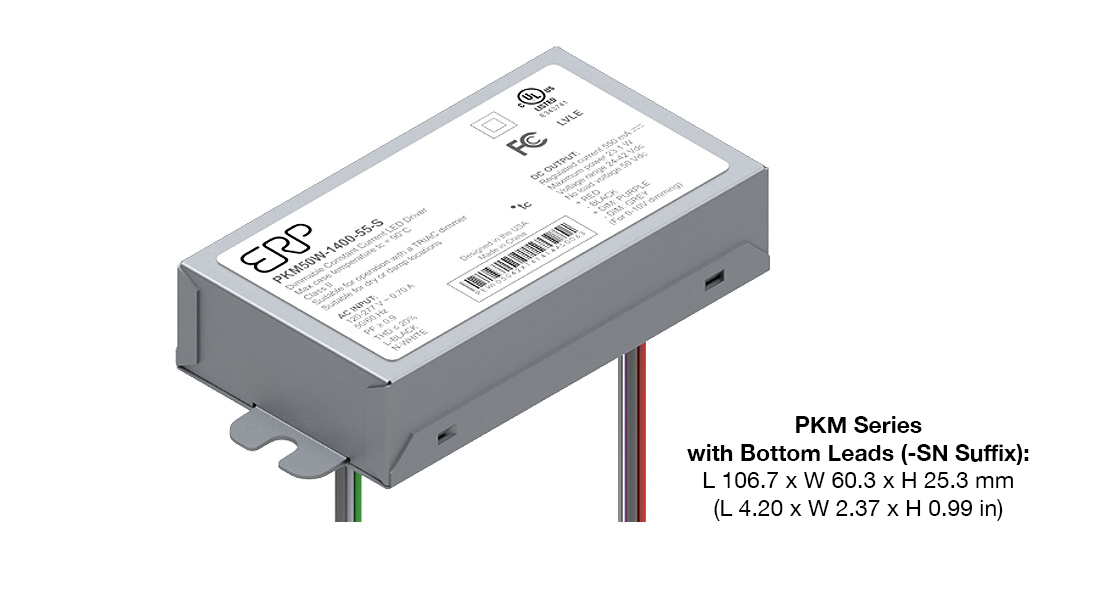

- Bottom Leads (-SN), Metal Case w/ Bottom Studs: L 106.7 x W 60.3 x H 25.3 mm (L 4.20 x W 2.37 x H 0.99 in)
- Side Leads, No Studs (-NN), Metal Case: L 106.7 x W 60.3 x H 25.3 mm (L 4.20 x W 2.37 x H 0.99 in)
- Terminal Blocks (-TN), Metal Case w/ Bottom Studs: L 106.7 x W 60.3 x H 25.5 mm (L 4.20 x W 2.37 x H 1.00 in)
Applications:
- Architectural
- Commercial lighting
- Indoor lighting
- Residential lighting
| ERP Part Number | Nominal Input Voltage (Vac) |
Output Current (mA) | Power (W) | Voltage Range (Vdc) | Case Type | Dimming | Status | Availability |
|---|---|---|---|---|---|---|---|---|
| PKM50W-1400-55-NN | 120 - 277 | 455 - 1400 | 50 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKM50W-1400-55-SN | 120 - 277 | 455 - 1400 | 50 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKM50W-1400-55-TN | 120 - 277 | 455 - 1400 | 50 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKM30W-1050-55-NN | 120 - 277 | 275 - 1050 | 30 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKM30W-1050-55-SN | 120 - 277 | 275 - 1050 | 30 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
| PKM30W-1050-55-TN | 120 - 277 | 275 - 1050 | 30 | 10-55 | IP20 Rectangular Metal | Programmable 0-10 V | production | Check > |
Notes:
There are currently no notes available at this time.
